NEM Ø19x51 coil
€49.48
Tax included
Delivery within 1-5 business days.
(40.23 € Excluding VAT. VAT at the legal rate applies.)
NEM 09801 coils for 19 mm tube, 24 or 36 W, DC or AC, with DIN, AMP-Junior or Deutsch plug.
NEM cartridge valves, to screw into blocks with the brand's standard cavities (08, 10, 12, 16 and 20, 2, 3 or 4-way). Each version in the list gives the cavity, the flow, the pressure range and the NEM code.

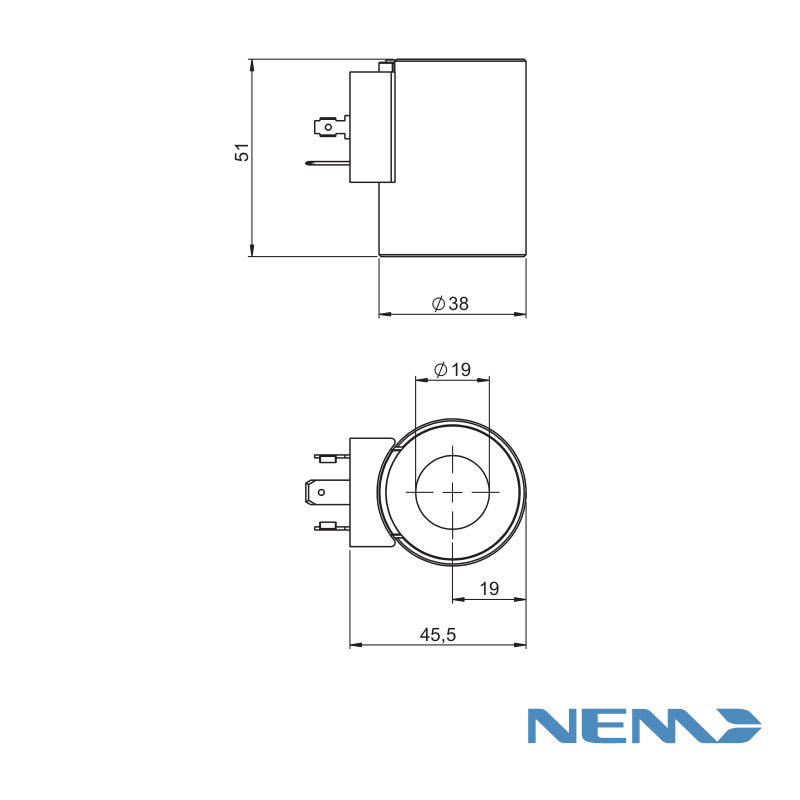

NEM 09801 series coils for solenoid valves with a 19 mm tube and 51 mm height, continuous duty (100% ED).
- 24 W: 12, 24 and 26 V DC and rectified 220 V AC, with DIN 43650, AMP-Junior (with diode) or Deutsch DT04 plug
- 36 W: 12 and 24 V DC
- Protection: IP65 (IP67 on the Deutsch ones); ambient temperature from -20 to +40 °C
- Weight: 0.28 kg
1.1339.098001190
