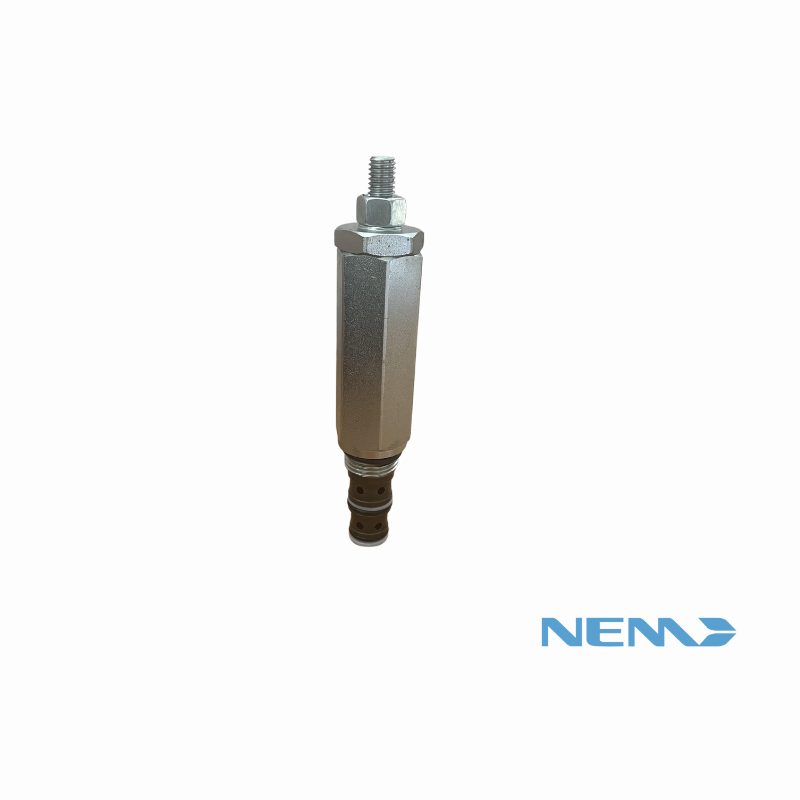

NEM pressure reducing valve (cartridge)

NEM cartridge valves, to screw into blocks with the brand's standard cavities (08, 10, 12, 16 and 20, 2, 3 or 4-way). Each version in the list gives the cavity, the flow, the pressure range and the NEM code.

They lower and hold the pressure in one branch of the circuit. The list has direct-acting reducing valves (cavities 8-3 and 10-3, from 5 to 150 bar), a pilot-operated one in cavity 10-3 from 20 to 350 bar and electro-proportional reducing valves of 0-20, 0-30 and 3-28 bar, at 12 or 24 V DC.
