Needle valve CAV8-2 (20 l/min): ST21A-A2/L20S-A

Name: Needle valve CAV8-2 (20 l/min): ST21A-A2/L20S-A
Brand: Argo Hytos
SKU: AH.29243001
Price: 46.01 EUR
Availability: InStock

€46.01

Tax included

(37.4 € Excluding VAT. VAT at the legal rate applies.)

Argo-Hytos 3/4-16 UNF cartridge needle valve, up to 20 l/min, adjusted with an Allen key.

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get Special Conditions

Ref. AH.29243001

€37.40 excl. VAT

Request a commercial proposal

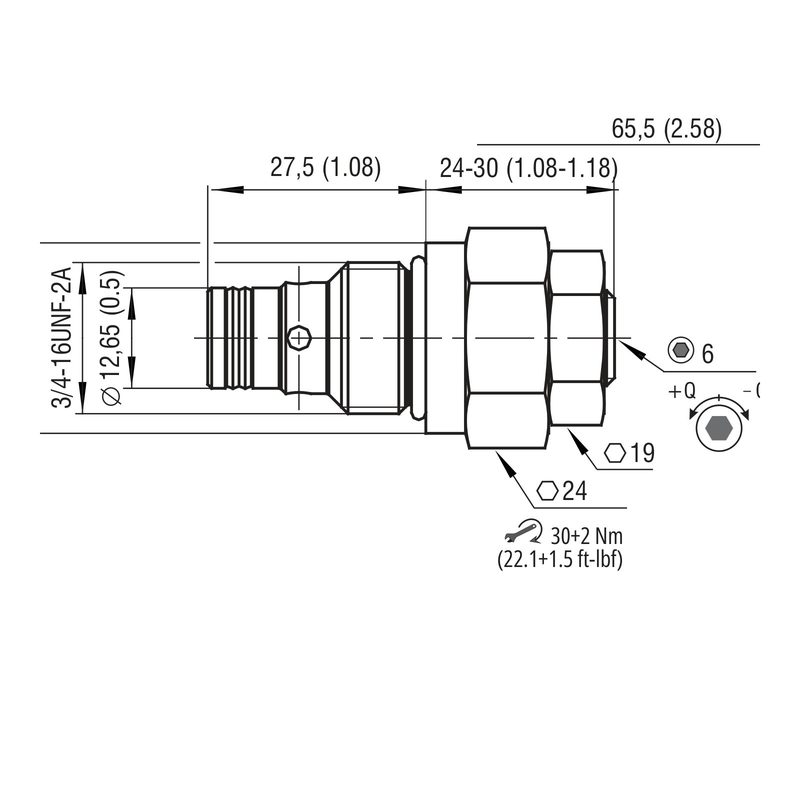

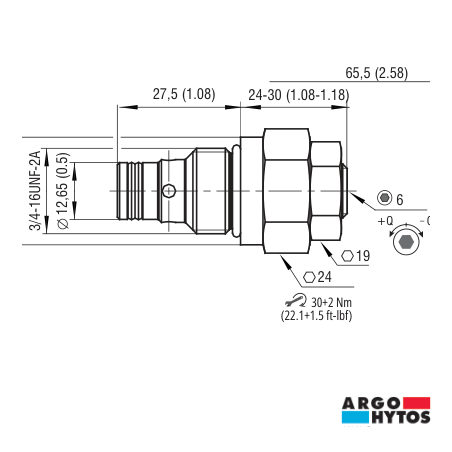

Cartridge needle valve that screws into a 3/4-16 UNF cavity (C-8-2) and regulates flow in both directions. This version has no by-pass check (that is the ST2C1A) and is adjusted with a 6 mm Allen key, without a cap. Adjustment is fine, linear and light, and can be locked with the lock nut.

Maximum flow: 20 l/min
Maximum pressure: 320 bar
NBR seals, from -30 to +100 °C
Zinc-plated, 240 h in salt spray (ISO 9227)
Cartridge tightening torque: 30 Nm; weight: 0.2 kg

Caution: after loosening the lock nut, the screw should only be turned as far as the red mark. Beyond it, the valve can come out completely and leak oil.
