Bondioli & Pavesi air/oil cooler A31

Name: Bondioli & Pavesi air/oil cooler A31
Brand: Bondioli Pavesi
Availability: InStock

€609.89

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(495.85 € Excluding VAT. VAT at the legal rate applies.)

Bondioli & Pavesi A31 aluminium air/oil cooler, G 1-1/4 connections, with 12 V, 24 V, 230 V or 400 V fan.

A31: 12 V

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.FR633170011

€495.85 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

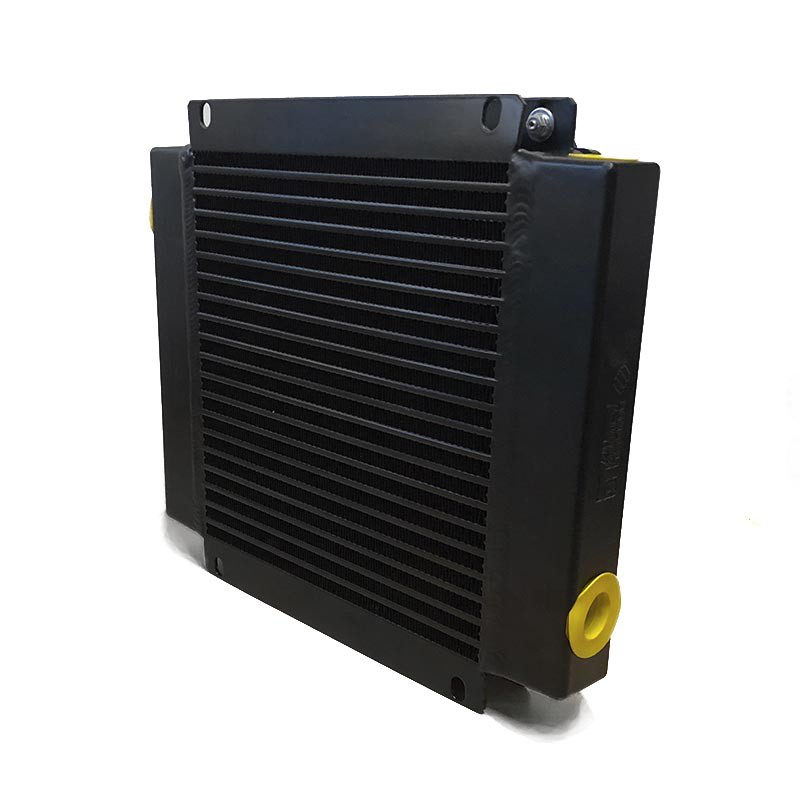

Bondioli & Pavesi A31 air/oil cooler (ECO series), with aluminium core and suction electric fan. It sits between the A25 and the A45 and cools the hydraulic oil of machines and power units, fitted in the return line.

G 1-1/4 oil connections and M22x1.5 port for thermostat
Oil capacity 3.2 l; weight 9.7 to 10 kg
Catalogue curves up to 175 l/min of oil

Versions: 12 V (FR633170011), 24 V (FR633170019), 230 V (FR633170033) and 400 V (FR633170035). Choose the machine voltage and check the space available for the cooler and the air flow.

Source: Bondioli & Pavesi A31 ECO technical data sheet, 398SAE023ES00, 27-01-2021.
