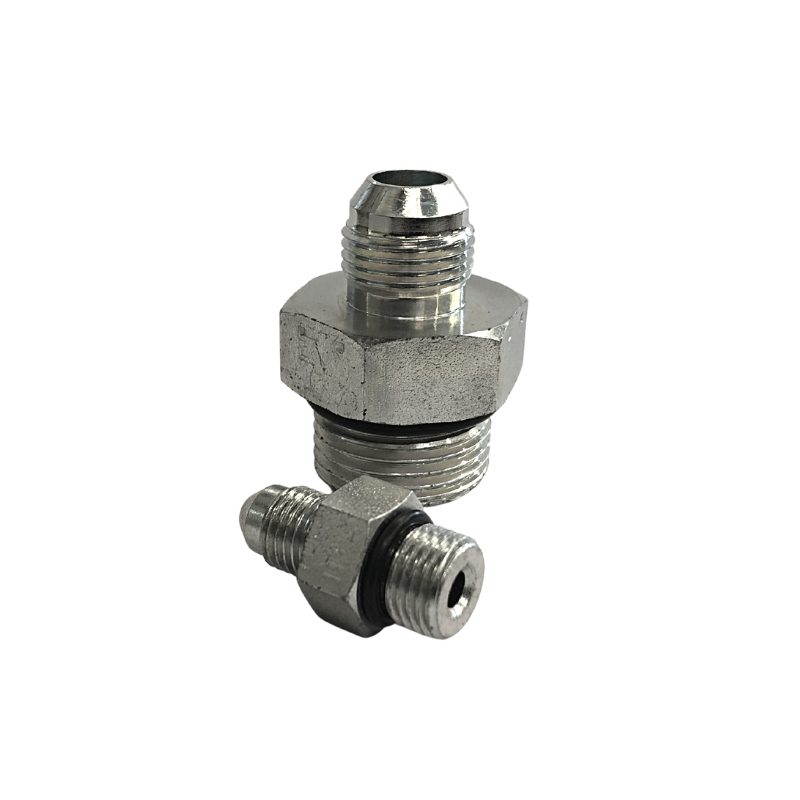

Male-male JIC-UNF union (S220)
search
  • Male-male JIC-UNF union (S220)

Male-male JIC-UNF union (S220)

€7.30
Tax included Delivery in 1 to 5 working days.

(5.93 € No tax)

Straight union with a male JIC 37° end and an O-ring male UNF end, for the UNF ports of pumps and valves. S220 series, from 7/16" to 1.7/8".

JIC accessory: 1.1/16" - 1.1/16"
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0621.11161116

€5.93 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

Straight union, S220 series, with an O-ring male UNF end for UNF ports (ORB type, common on pumps and valves of American origin) and a male JIC 37° end for the hose fitting. The UNF side seals with the O-ring in the port chamfer; the JIC side, metal to metal on the 37° cone.

  • With both threads the same: 7/16", 1/2", 9/16", 3/4", 7/8", 1.1/16", 1.5/16", 1.5/8" and 1.7/8"
  • With different sizes on each side: 7/16"-1/2", 7/16"-9/16", 9/16"-7/16", 9/16"-3/4", 3/4"-7/8", 3/4"-1.1/16", 7/8"-3/4", 7/8"-1.1/16", 1.1/16"-3/4", 1.1/16"-7/8", 1.1/16"-1.5/16" and 1.5/16"-1.1/16"

On the combinations with different sizes, if you are unsure which is the JIC side and which the UNF side, please contact us before ordering.

1.0621.11161116

Specific References

ean13
2200009036101

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (22)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
7/16" - 7/16"
1.0621.716716
In stock
7/16" - 1/2"
1.0621.71612
In stock
7/16" - 9/16"
1.0621.716916
In stock
1/2" - 1/2"
1.0621.1212
In stock
9/16" - 7/16"
1.0621.916716
On request
9/16" - 9/16"
1.0621.916916
Last units
9/16" - 3/4"
1.0621.91634
In stock
3/4" - 3/4"
1.0621.3434
Last units
3/4" - 7/8"
1.0621.3478
In stock
3/4" - 1.1/16"
1.0621.341116
In stock
7/8" - 3/4"
1.0621.7834
In stock
7/8" - 7/8"
1.0621.7878
In stock
7/8" - 1.1/16"
1.0621.781116
In stock
1.1/16" - 3/4"
1.0621.111634
In stock
1.1/16" - 7/8"
1.0621.111678
In stock
1.1/16" - 1.1/16"
1.0621.11161116
In stock
1.1/16" - 1.5/16"
1.0621.11161516
Last units
1.5/16" - 1.1/16"
1.0621.15161116
In stock
1.5/16" - 1.5/16"
1.0621.15161516
In stock
1.5/8" - 1.5/8"
1.0621.15181518
In stock
1.5/8" - 1.5/8"
1.0621.158158
In stock
1.7/8" - 1.7/8"
1.0621.178178
On request
