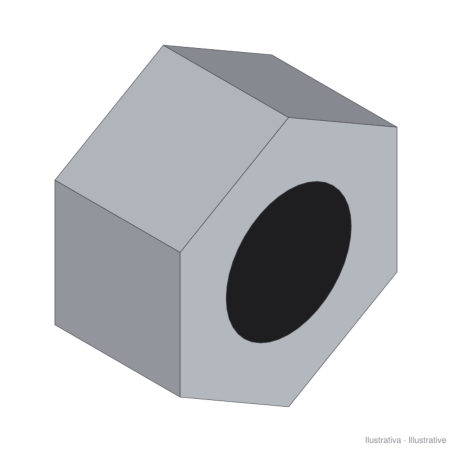

DIN nut for lubrication 6LL

Name: DIN nut for lubrication 6LL
Brand: VOSS
Availability: InStock

€0.41

Tax included Delivery in 1 to 5 working days.

(0.33 € No tax)

LL series DIN nut for 6 mm lubrication pipe.

Lubrication accessory: 6LL

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5918.6LL

€0.33 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

LL (extra-light) series DIN nut for 6 mm OD pipe, used on centralised lubrication lines. It is fitted with the cutting ring from the same series: when the nut is tightened on the fitting, the ring bites into the pipe and makes the seal.

Pipe: 6 mm (LL series)
Nut thread: M10x1
Spanner size: 12 mm
Nominal pressure: PN 100

The thread, spanner size and pressure are taken from the attached VOSS datasheet for the LL6 nut. Check the outside diameter of the pipe before ordering.

Source: VOSS DIN union nuts datasheet.
