Adjustable WEE BSP elbow

€18.65
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(15.17 € Excluding VAT. VAT at the legal rate applies.)

VOSS WEE adjustable elbow from DIN tube to BSP thread, set in position and held with the locknut.

DIN WEE accessory: 10L - 1/4"
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5902.E10LR

€15.17 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

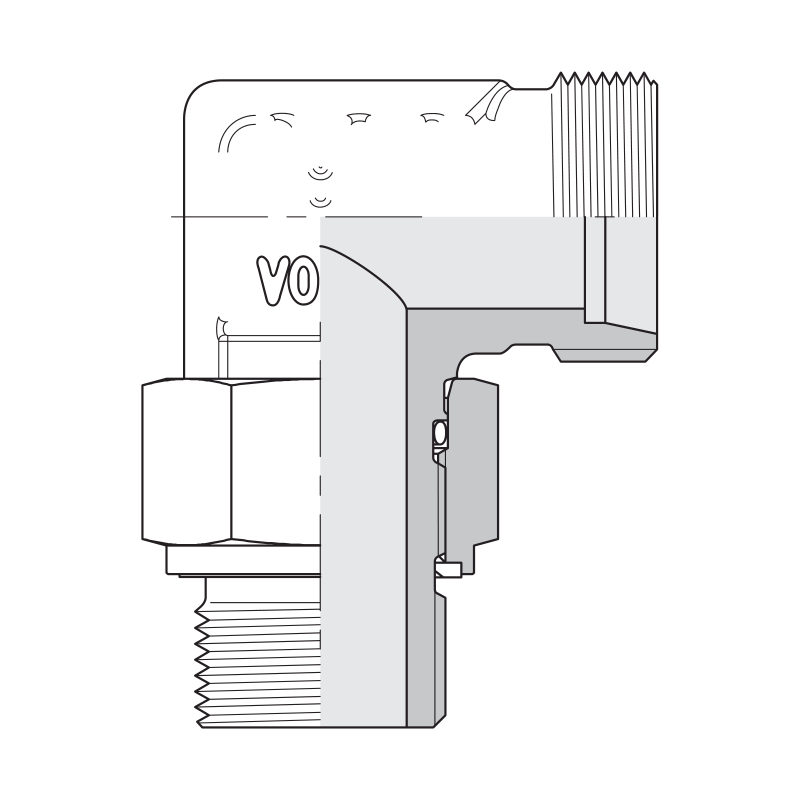

90° elbow with one end for DIN 2353 tube (ISO 8434-1, 24° cone), for use with a nut and cutting ring, and a male thread with locknut for the port of the manifold, pump or valve. It is screwed in, turned to the required direction and the locknut is then tightened, whatever point the thread stops at.

  • Tube from 6L to 42L and from 6S to 38S, with threads from 1/8" to 1.1/2"
  • In the attached VOSS datasheet, the WEE has a parallel BSPP thread (ISO 1179-2) and seals with an NBR PEFLEX profile ring
  • Nominal pressure in the datasheet: from 315 to 160 bar, depending on the size

Each option shows the tube and the thread (for example 12L - 3/8"). Check the tube diameter, the series and the port thread before ordering. Sold as the body only: the DIN nut and cutting ring are sold separately and are listed in this item's accessories.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.

1.5902.E10LR

Specific References

Internal barcode
2200007013708

You might also like

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (23)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
6L - 1/8"
1.5902.E6LR
In stock
6S - 1/4"
1.5902.E6SR
In stock
8L - 1/4"
1.5902.E8LR
In stock
8S - 1/4"
1.5902.E8SR
In stock
10L - 1/4"
1.5902.E10LR
In stock
10S - 3/8"
1.5902.E10SR
Last units
12L - 1/4"
1.5902.E12LR14
Last units
12L - 3/8"
1.5902.E12LR
In stock
12S - 3/8"
1.5902.E12SR
Last units
12L - 1/2"
1.5902.E12LR12
In stock
14S - 1/2"
1.5902.E14SR
Last units
15L - 1/2"
1.5902.E15LR
In stock
16S - 1/2"
1.5902.E16SR
In stock
16S - 3/4"
1.5902.E16SR34
Last units
18L - 1/2"
1.5902.E18LR
In stock
20S - 3/4"
1.5902.E20SR
Last units
22L - 3/4"
1.5902.E22LR
Last units
25S - 1"
1.5902.E25SR
Last units
28L - 1"
1.5902.E28LR
In stock
30S - 1.1/4"
1.5902.E30SR
Last units
35L - 1.1/4"
1.5902.E35LR
Last units
38S - 1.1/2"
1.5902.E38SR
Last units
42L - 1.1/2"
1.5902.E42LR
Last units
