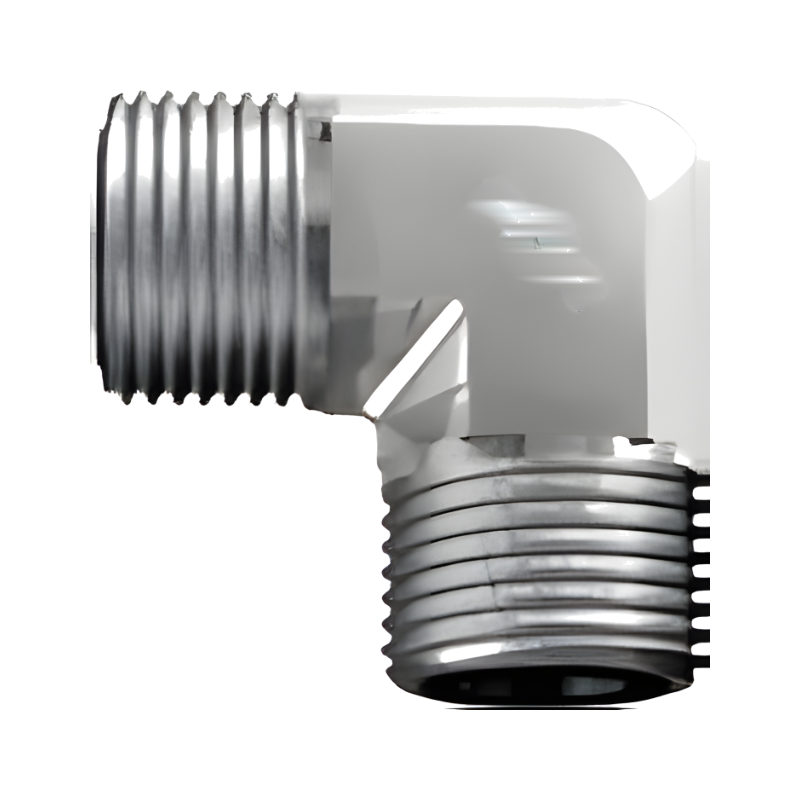

90° male-male ORFS elbow

* Price on request *

Price including VAT at the legal rate

90° male-male ORFS elbow.

ORFS accessory: 1"

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0949.11

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

90° elbow with a male ORFS end at both ends, of the same size. It joins two female ORFS hose fittings at a right angle, for example to connect two hoses in a tight space without bending them below their minimum radius.

An ORFS connection seals with an O-ring seated in the flat face of the male, pressed against the face of the female part. When fitting, check that the O-ring is in place and in good condition.

Sizes available: 9/16", 11/16", 13/16", 1", 1.7/16", 1.11/16" and 2".

To identify the ORFS size, measure the outside diameter of the male thread: about 14.3 mm for 9/16", 17.5 mm for 11/16", 20.6 mm for 13/16", 25.4 mm for 1" and 30.2 mm for 1.3/16".
