EMA3 test point JIC

Name: EMA3 test point JIC
Brand: Oleotec
Availability: InStock

€20.29

Tax included Delivery in 1 to 5 working days.

(16.49 € No tax)

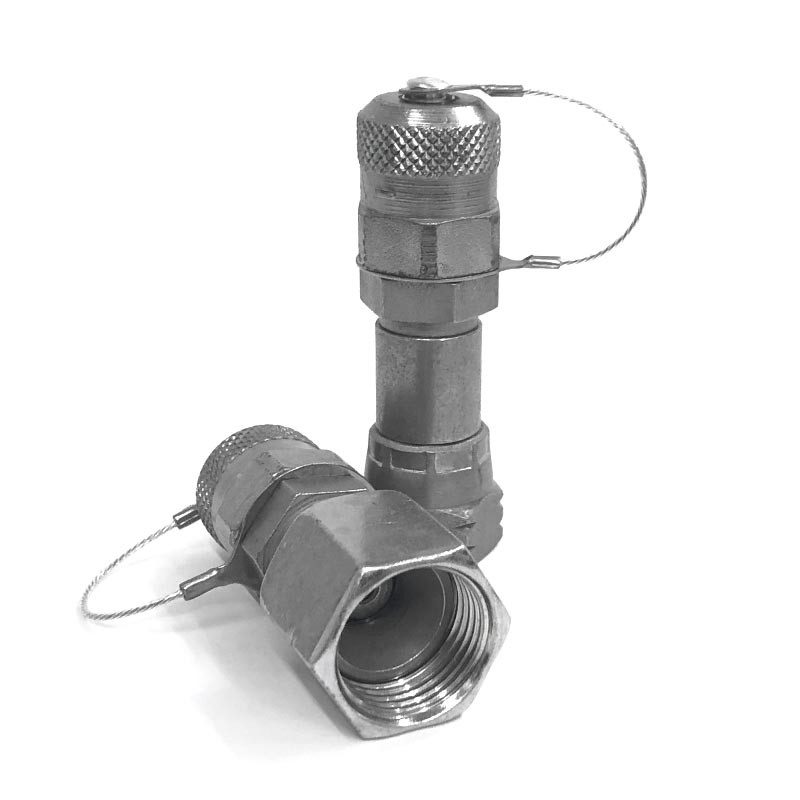

Oleotec EMA3 test point with JIC 37° thread, in 7/16", 9/16" and 3/4".

Test point accessory: 3/4"

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5931.3F34

€16.49 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Oleotec test point with JIC 37° thread (SAE J514 / ISO 8434-2), for circuits with JIC connections, very common on machines of American origin. At the top it has the EMA3 test connection (M16x2), where a test hose or pressure gauge connects to check pressure, bleed air or take an oil sample.

Available in 7/16", 9/16" and 3/4" threads. Steel body and cap with zinc-nickel finish. The maximum pressure depends on the thread: see the attached catalogue.

Before ordering, check the thread and that the connection is 37° JIC and not ORFS or 45° SAE, which look similar.

Source: Oleotec MCS technical catalogue, revision 02/20.
