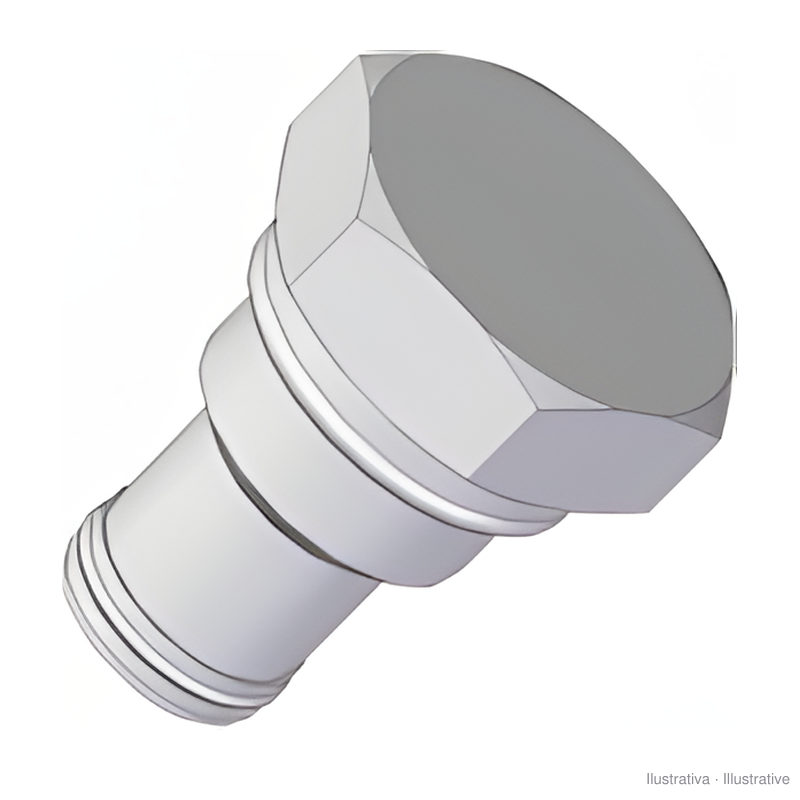

Hydronit centre manifold plug

Name: Hydronit centre manifold plug
Availability: InStock

€5.70

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(4.63 € Excluding VAT. VAT at the legal rate applies.)

Hydronit plugs for the 3/4-16 UNF cavities of the centre manifold, blind or with 1/4" BSP outlet.

Plug: Closed

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0671.E70100005

€4.63 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

3/4-16 UNF cartridge plugs for the cavities of the centre manifold of Hydronit mini power packs: they close the cavities without a valve or take a 1/4" BSP connection from them. The letter in brackets is the one used in the power pack code.

E70100005 (G): blind
E70100003 (H): with 1/4" BSP outlet, for a gauge, pressure switch or test point
E70100002 (N): open passage with 1/4" BSP outlet
E70100006 (P): 1/4" BSP through passage
E70100004 (L): basic plug
E70200010 (XP) and E70100010: blind, for the relief valve cavity

G and H plugs go in cavities 2 and 4 of UA and UB manifolds when they are not used; the L plug in cavity 3 of U4 and UB manifolds.

Source: Hydronit Hydraulic Power Packs technical catalogue, 2025-01/EN; Hydronit AC & DC Hydraulic Power Packs Compact technical catalogue, version PPC2010-05/EN.

Reference 1.0671.E70100005

Download
