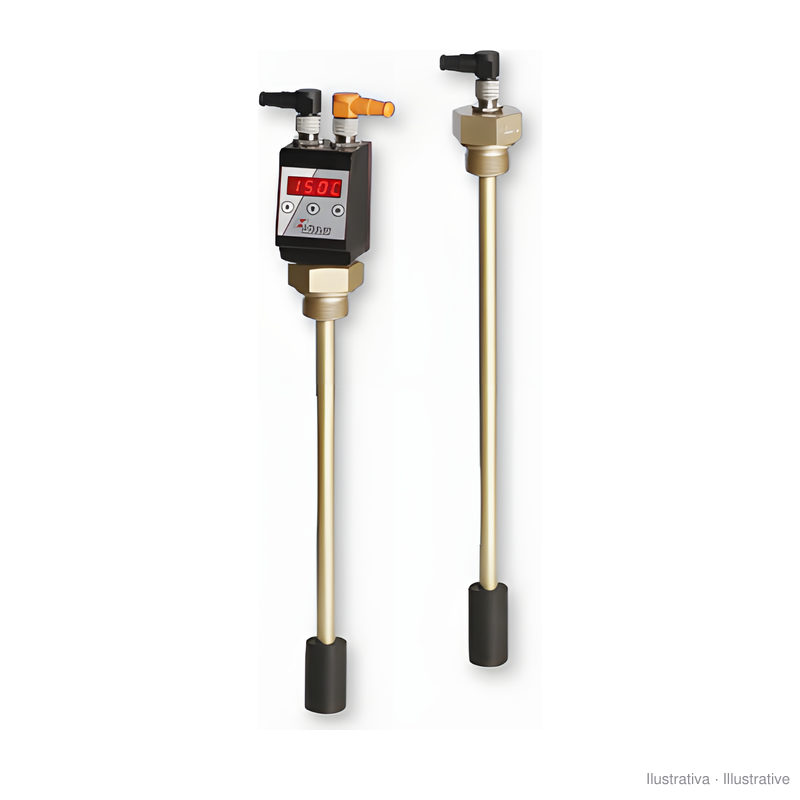

Bühler electric level switch NT-M-MS

Name: Bühler electric level switch NT-M-MS
Brand: Bühler
Availability: InStock

€199.86

Tax included Delivery in 1 to 5 working days.

(162.49 € No tax)

Bühler NT-M-MS electric level switch with thermostat, from 150 to 500 mm.

Product customization

Don't forget to save your customization to be able to add to cart

Bühler: L: 150mm

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. BULNTM150601K

€162.49 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Bühler Nivotemp NT M level and temperature switch, with brass (MS) body and tube and G3/4 thread for the tank top. It has one level contact (1K) and a thermostat that opens at 60 °C (TM60NC). The full code is NT-M-MS-G3/4-M3/(L)-1K-TM60NC, where L is the chosen length.

Lengths: 150, 280, 370 or 500 mm
Level contact: up to 230 V AC/DC, 0.5 A and 10 VA
Temperature contact: up to 230 V AC/DC and 2 A; tolerance ± 5 K
M3 connector (DIN EN 175301-803, 3 pins + earth), IP65
Up to 1 bar, from -20 to +80 °C; SK 161 NBR float; minimum oil density: 0.80 kg/dm³

When ordering, tell us how the contact should be when the float is at the minimum: open or closed.

Source: Bühler Nivotemp NT M, NT MD data sheet, DE100211, 01/2022.
