M+S KK steering column

Name: M+S KK steering column
Brand: M+S Hydraulics
Availability: InStock

€150.61

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(122.44 € Excluding VAT. VAT at the legal rate applies.)

M+S KK steering column, to mount the steering wheel on the hydrostatic steering unit.

KK steering column: KK390IE

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. MS.KK390IE

€122.44 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

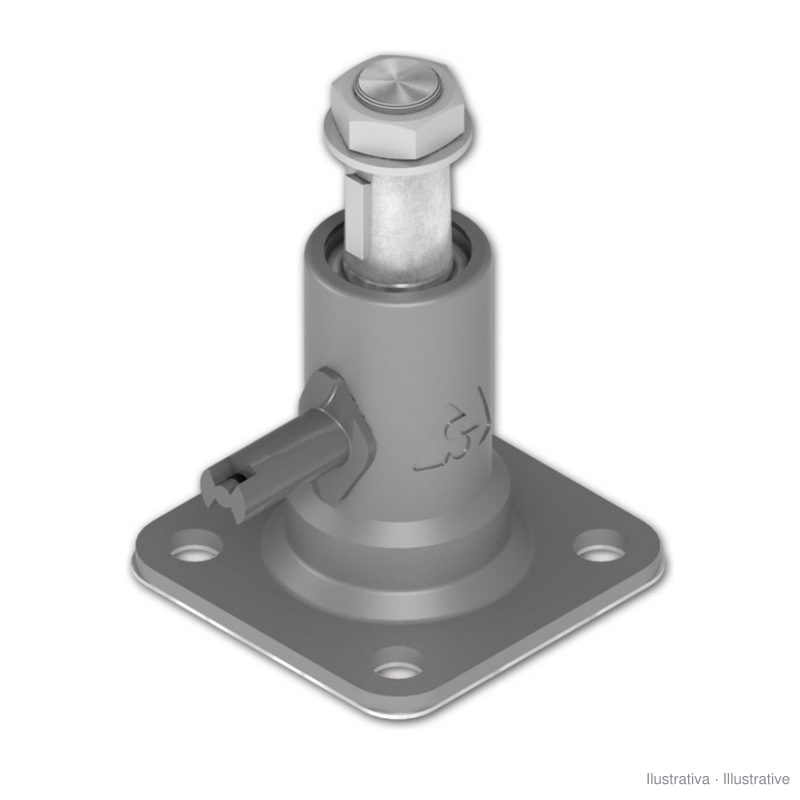

The M+S Hydraulic KK column transfers the torque from the steering wheel to the HKU, HKUS or similar hydrostatic steering unit. It is a tube with the control shaft centred inside, yellow galvanized as standard.

KK75: length 78 mm
KK390: 393 mm
KK441: 441 mm
KK750: 777.8 mm
Permissible loads: 24 daNm torque at the steering wheel, 20 daNm bending moment and 100 daN axial load

According to the catalogue coding, the IE suffix means shaft type I and one electric signal connection. Columns longer than 150 mm need additional support. Check the length and the type of steering wheel shaft end before ordering.

Source: M+S Hydraulic Hydrostatic Steering Units & Accessories technical catalogue.
