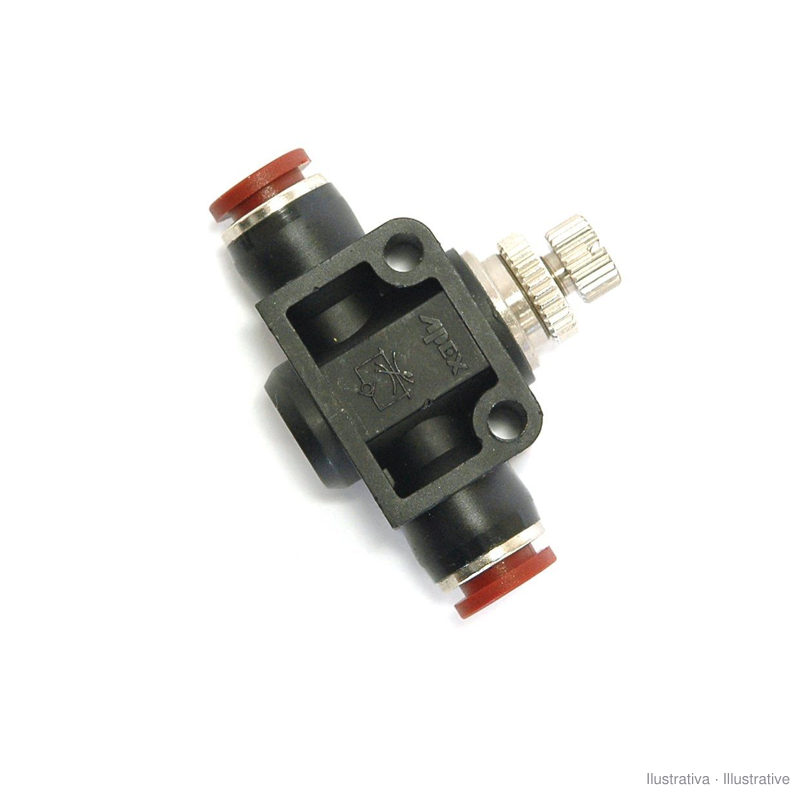

Bidirectional in-line push-in flow regulator, Aircomp Line 321

In-line flow regulator from the Aircomp Line 321 range (321.06 series, bidirectional version). It is fitted part-way along the tube, with push-in sockets at both ends, and throttles the air in both directions, unlike the unidirectional version, which has free flow one way. It is used to limit the flow in a line, for example an air blow line or a single-acting actuator.

• Compressed air and vacuum (air only, no other fluids)
• Working pressure 0 to 10 bar
• Temperature -10 to 60 °C
• Recommended tube: nylon or polyurethane

Available for Ø4 mm (321.06.04) and Ø6 mm (321.06.06) tube. It can be fitted either way round.

Source: Aircomp Raccordi 2011 technical catalogue.
