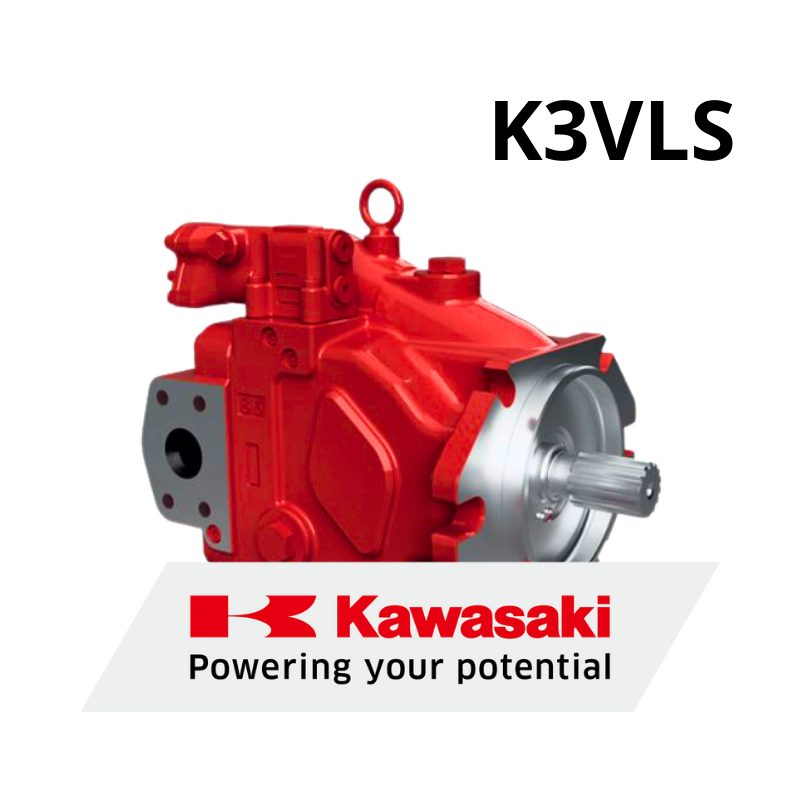

Kawasaki pump K3VLS105

Kawasaki's K3VLS is a swashplate axial piston pump with variable displacement, for open circuits, designed for mobile machines and medium-pressure industrial vehicles: 280 bar nominal and 350 bar peak, with load sensing control and pressure cut-off.

The available versions are in the list, with the full code of each. In the code, the letter after the 1 gives the through-drive (N, with capped through-drive; R, without through-drive and rear ports), the next one the direction of rotation (R, right; L, left), and the following letters the flange, the shaft and the thread of the port flanges. L1 is load sensing without bleed orifice and L0 with orifice; the final A is the standard differential, 10 to 30 bar.

In size 105: 105 cc/rev maximum displacement, up to 2,300 rpm self-priming and 2,640 rpm maximum, weighing about 37 kg.
