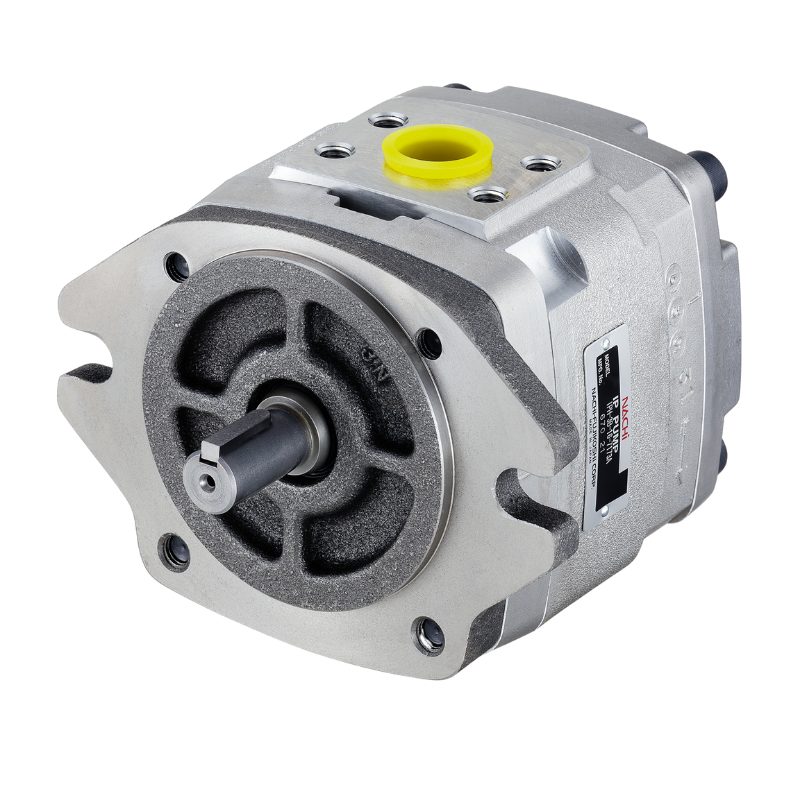

Nachi IPH-2B internal gear pump

* Price on request *

Price including VAT at the legal rate

Nachi IPH-2B internal gear pump, fixed displacement and flange mounted, up to 300 bar. In 5.24 and 6.55 cc/rev.

Nachi: IPH-2B-5-7173A

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. NAC.IPH2B57173A

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The Nachi IPH is a fixed displacement internal gear pump for industrial power units. It has axial and radial pressure compensation, which gives it good efficiency and lets it work at pressures that are high for a gear pump.

Rated pressure: 250 bar; maximum working pressure: 300 bar
Speed: from 600 to 2,000 rpm
Flange mounting (B in the code), clockwise rotation viewed from the shaft end
Weight: about 2.5 kg

There are two displacements: IPH-2B-5-7173A, with 5.24 cc/rev, and IPH-2B-6.5-7173A, with 6.55 cc/rev. Check the code on the pump nameplate: if it has an L after the displacement, the rotation is anticlockwise and it is a different part number.

Source: Nachi IPH Internal Gear Pump technical catalogue, version 2016.02.EN.
