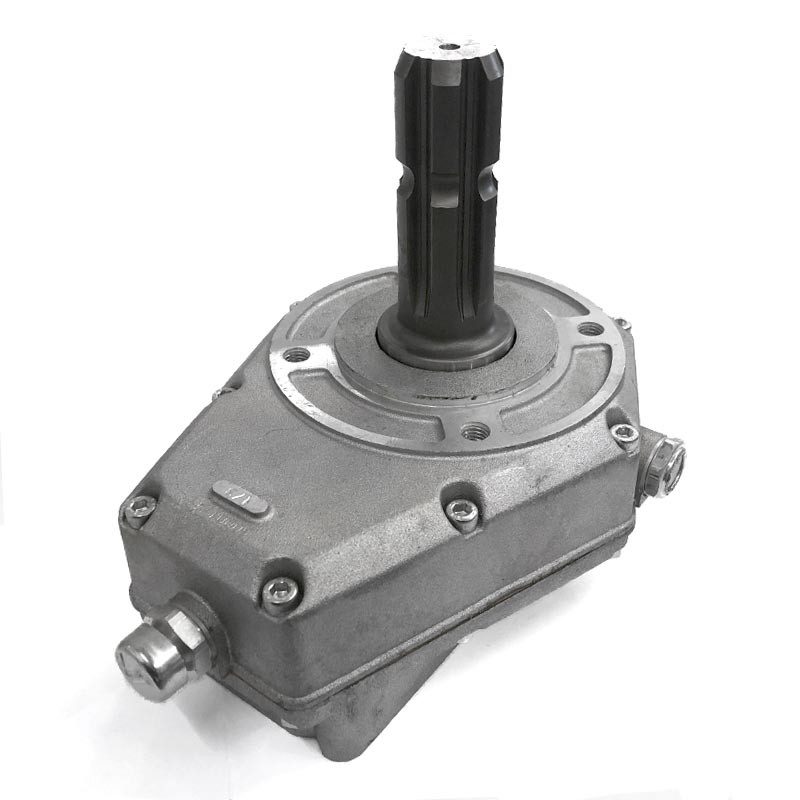

Borelli 1:3 speed increaser

Name: Borelli 1:3 speed increaser
Availability: InStock

€162.49

Tax included Delivery in 1 to 5 working days.

(132.1 € No tax)

Borelli 1:3 ratio speed increaser, for group 2 and 3 pumps, with male or female shaft.

Multiplier gearbox: Male shaft - group 2 (60001-4)

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0660.M2

€132.10 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Oleodinamica Borelli gearbox speed increasers with a 1:3 ratio, for driving gear pumps from a power take-off. There are two series, each with a male or female input shaft:

60000 series, group 2 (60001-4 male, 60002-4 female): up to 10 kW, 18 daNm input torque, 5.5 kg, 0.22 l of oil.
71000 series, group 3 (71001-4 male, 71002-4 female): up to 20 kW, 49 daNm input torque, 8.4 kg, 0.35 l of oil.

The values are those in the Borelli catalogue for 540 rpm at the input, with the output at 1,680 rpm (60000 series) or 1,620 rpm (71000 series). The pump flanges listed are Bosch group 2 or SAE A group 2 for the 60000 series, and SAE A or SAE B group 3 for the 71000 series. Choose the series by the pump group and the power, and the shaft by the connection to the power take-off.

Source: Oleodinamica Borelli Moltiplicatori technical catalogue, 2014.

Reference 1.0660.M2

Download
