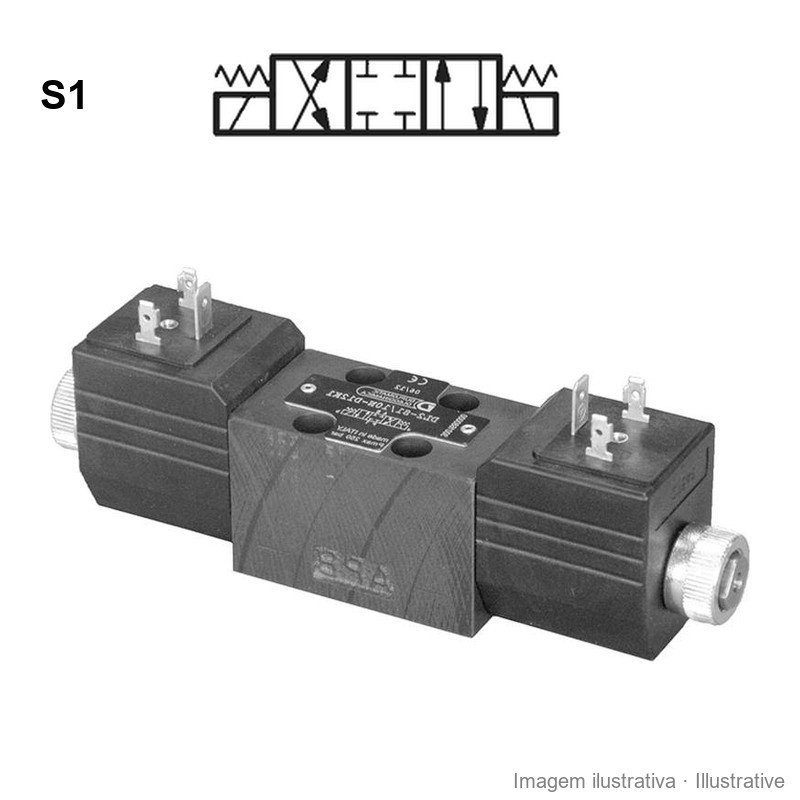

Duplomatic DL2 solenoid valve (NG4)

Name: Duplomatic DL2 solenoid valve (NG4)
Brand: Duplomatic
Availability: InStock

* Price on request *

Price including VAT at the legal rate

Duplomatic DL2 compact directional solenoid valve, NG4 (CETOP 2), up to 20 l/min and 250 bar, with 12 or 24 V DC coils.

Operation: 2 solenoids, 3 positions (4/3)

Spool: S1

Current: DC

Voltage: 24 V

Extras: None

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DL2S1D24

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The DL2 is a direct-acting directional solenoid valve for NG4 (CETOP 2) subplate mounting to ISO 4401-02, in a compact version with small solenoids. Duplomatic designs it for mini power packs and for mobile and agricultural machines.

Maximum pressure: 250 bar at P, A and B; 160 bar at T
Maximum flow: 20 l/min
Spools in the list: S1 and S3 (2 solenoids, 3 positions, spring centred) and TB (1 solenoid on side B, 2 positions, spring return)
12 or 24 V DC coils, DIN 43650 connector plug
Cast iron body, NBR seals

Check the spool type and the coil voltage on the plate of the fitted valve.

Source: Duplomatic DL2 technical catalogue, version 41 100/115 ED.
