Badestnost P80 manual directional valve
search
  • Badestnost P80 manual directional valve

Badestnost P80 manual directional valve

€156.36
Tax included Delivery in 1 to 5 working days.

(127.13 € No tax)

Badestnost P80 manual monoblock directional valve, 1 to 6 levers, for 80 l/min and 250 bar.

P80 directional valve: 1 lever
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2342.A1

€127.13 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

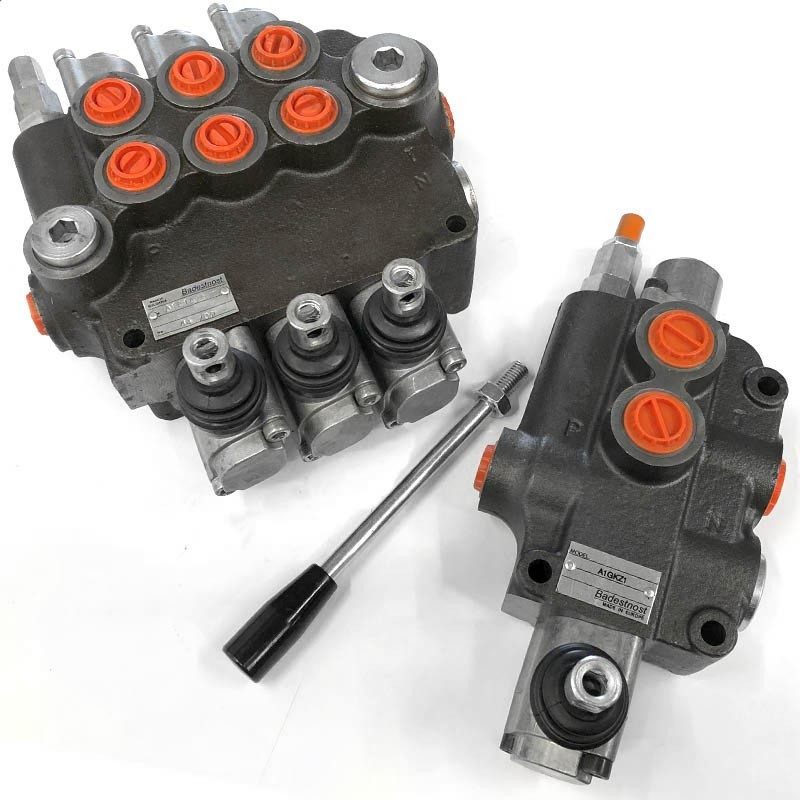

Badestnost P80 hydraulic monoblock directional valve, lever operated. It is fixed with three M8 bolts. It is used on agricultural and industrial machines with flows up to 80 l/min.

  • Nominal flow: 80 l/min
  • Maximum pressure: 250 bar at P, 300 bar at A and B, 50 bar at return T
  • Internal leakage: 18 cm³/min at 120 bar
  • Spool stroke: ± 7 mm

The options include versions with 1 to 6 levers and A1 spools (double-acting, A and B closed in the centre, spring return) and two 3-lever versions with mixed spools, A1-A1-B1 and A1-C1-C1; spool types B and C are in the spool table of the data sheet. In the catalogue BSP thread version, P, A and B are G1/2 and T is G3/4.

Source: Badestnost P80 data sheet.

1.2342.A1

Data sheet

Pressure
250 bar
Flow
80 L/min

Specific References

ean13
2200001048706

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (13)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
1 lever
1.2342.A1
In stock
1 alavanca B1 (simples efeito)
1.2342.B1
In stock
1 alavanca C1 (simples efeito)
1.2342.C1
In stock
2 levers
1.2342.2A1
In stock
2 alavancas A1-A1 com comando hidráulico
1.2342.2A1H
Last units
2 alavancas A1-B1
1.2342.2A1B1
Last units
2 alavancas A1-C1
1.2342.2A1C1
Last units
3 levers
1.2342.3A1
Last units
3 levers A1-A1-B1
1.2342.3A1A1B1
On request
3 levers A1-C1-C1
1.2342.3A1C1C1
On request
4 levers
1.2342.4A1
Last units
5 levers
1.2342.5A1
Last units
6 levers
1.2342.6A1
Last units
