GG 90° rotary joint

Name: GG 90° rotary joint
Availability: InStock

€27.21

Tax included Delivery in 1 to 5 working days.

(22.12 € No tax)

Marchesini GG 90° rotary joint, 1/4" to 3/4".

GG rotary joint: 1/4" - G0990

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA14.G0990

€22.12 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

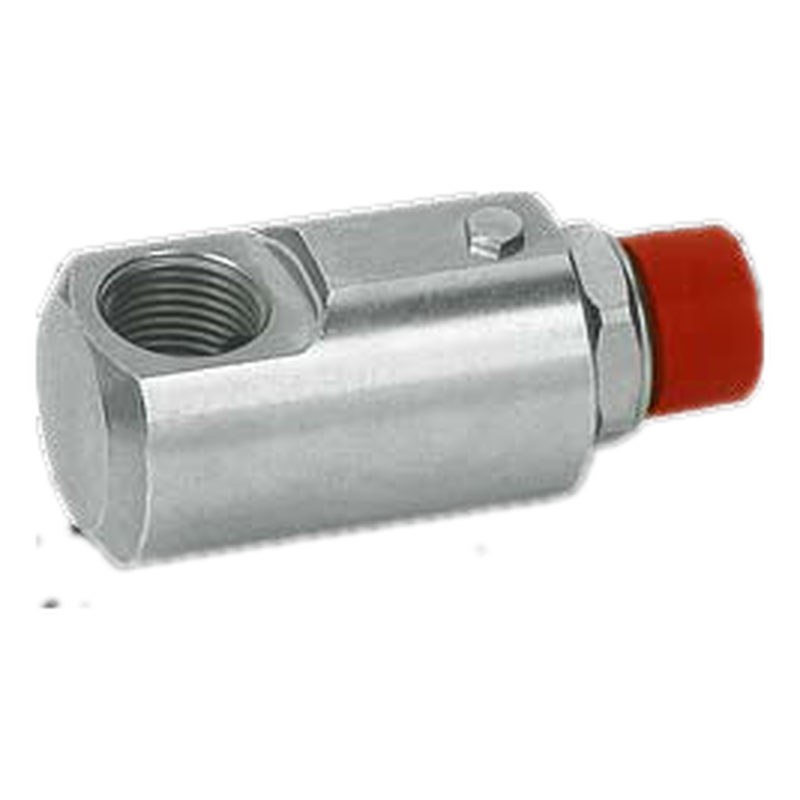

Marchesini swivel joint with 90° outlet, to fit between a hose and a fixed part. It lets the connection turn and takes up the twisting of the hose while the machine works, which keeps the hose from being damaged. It is not suitable for fast, continuous rotation.

G0990 (1/4"): 25 l/min, 200 bar while rotating, 400 bar static
G1010 (3/8"): 35 l/min, 200 / 400 bar
G1020 (1/2"): 60 l/min, 150 / 300 bar
G1030 (3/4"): 100 l/min, 150 / 300 bar
BSP (G) threads; zinc-plated steel body, low-friction seals

For in-line mounting there is the GGL version.

Source: Oleodinamica Marchesini technical catalogue, section 14 Giunti girevoli.

Reference 1.MA14.G0990

Data sheet
