HYDAC bladder 7/8"-14 UNF for accumulator

Name: HYDAC bladder 7/8"-14 UNF for accumulator
Brand: Hydac
Availability: InStock

€390.22

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(317.25 € Excluding VAT. VAT at the legal rate applies.)

HYDAC replacement bladder with 7/8"-14 UNF gas valve, for accumulators from 2.5 to 50 litres.

Size: 2.5 L

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. HYD236171

€317.25 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

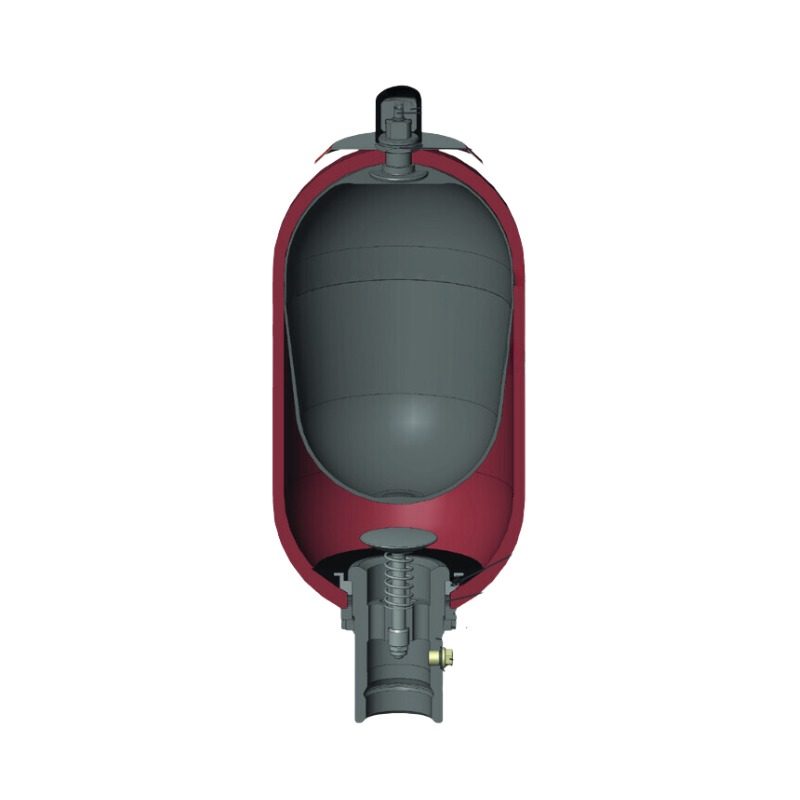

Replacement bladder for HYDAC bladder accumulators, with a 7/8"-14 UNF gas valve thread, the standard connection on SB330 and SB400 accumulators up to 32 litres. In the HYDAC catalogue, the bladder assembly includes the bladder, gas valve, lock nut, seal cap, protective cap and O-ring.

HYDAC part numbers (NBR, standard version): 236171 (2.5 L), 236046 (4 L), 2112097 (6 L), 236088 (10 L), 376249 (13 L), 236089 (20 L), 376253 (24 L) and 235335 (32 L)
A 50 L bladder is also available

The bladder is chosen by the accumulator volume. When fitting it, also replace the accumulator seal kit and pre-charge with nitrogen only, to the pressure specified for the circuit.

Source: HYDAC Accumulator Technology technical catalogue, E 30.000.4/01.17.
