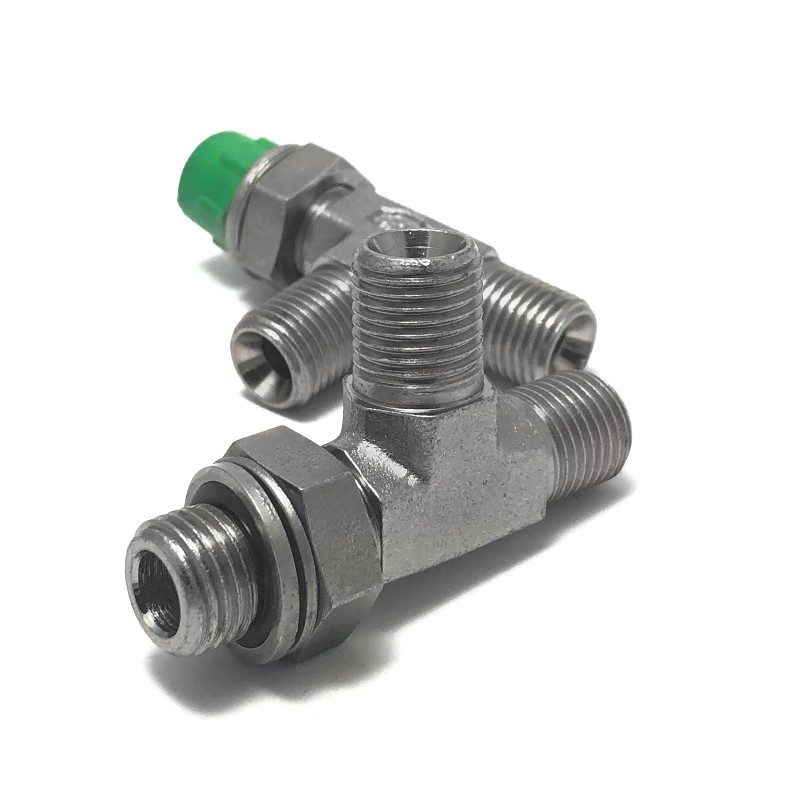

Adjustable male-male-male BSP tee (S970)

Name: Adjustable male-male-male BSP tee (S970)
Availability: InStock

€16.74

Tax included Delivery in 1 to 5 working days.

(13.61 € No tax)

Tee with three male BSP ends that is set in the required position before tightening, to split one hydraulic line into two. From 1/4" to 1".

BSP: 1/2"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0631.12P

€13.61 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

Tee with three male BSP ends, S970 series. Because it is adjustable, it can be turned until the ends point where the hoses or tubes need to go, and only then tightened. It is used to split one line into two, or join two into one, at the outlet of pumps, manifolds and valves.

All three ends are the same size: choose from 1/4", 3/8", 1/2", 3/4" and 1" in the options.

The BSP size is nominal and is not the thread diameter: a 1/2" BSP male measures about 20.9 mm across the thread and a 3/4" about 26.4 mm. Before ordering, measure the thread on the part the tee will be fitted to.

Reference 1.0631.12P
