Adjustable male-male-male BSP tee (S975)

Name: Adjustable male-male-male BSP tee (S975)
Availability: InStock

€57.19

Tax included Delivery in 1 to 5 working days.

(46.49 € No tax)

Tee with three male BSP ends that is set in the required position before tightening, to split one hydraulic line into two. S975 series, from 1/4" to 1".

BSP: 1"

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0643.1

€46.49 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

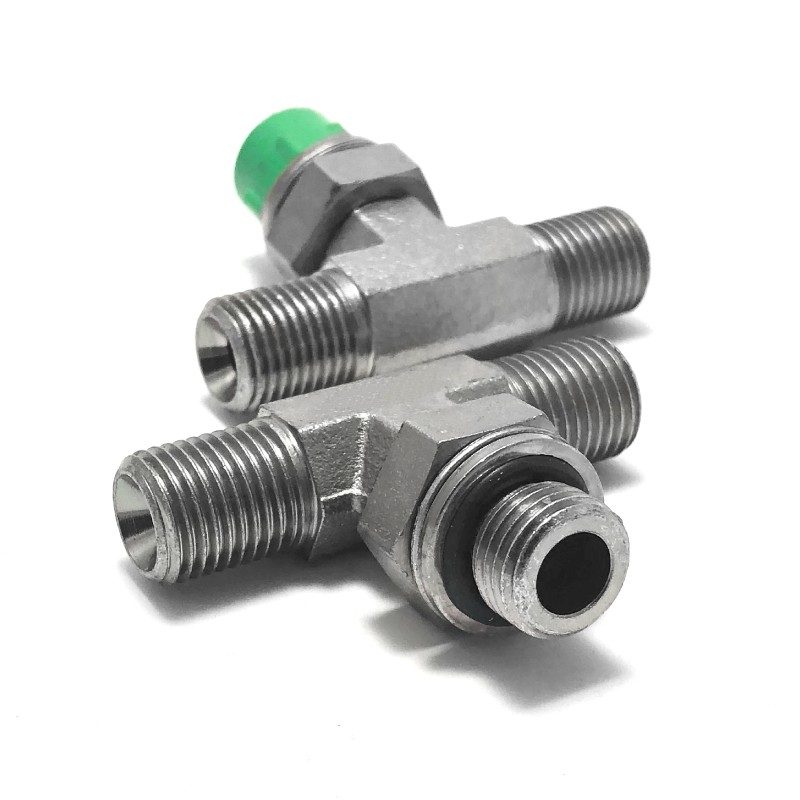

Adjustable tee, S975 series, with a male BSP thread on all three ends. It is fitted, turned until each end points at its hose or tube and only then tightened, so the hoses do not have to be forced into line. It is used to branch off a line, or join two, on pumps, manifolds and machine circuits.

Sizes available, the same on all three ends: 1/4", 3/8", 1/2", 3/4" and 1".

There is also the S970 series in the same sizes. If you are replacing a part, check the series and measure the thread: a 3/8" BSP male is about 16.7 mm across the thread and a 1" about 33.2 mm.

Reference 1.0643.1
