VOSS hydraulic hose SAE 100R15 1 1/2", 420 bar
search
  • VOSS hydraulic hose SAE 100R15 1 1/2", 420 bar

VOSS hydraulic hose SAE 100R15 1 1/2", 420 bar

€122.77
Tax included

(99.81 € No tax)

VOSS 1 1/2" spiral hydraulic hose, SAE 100R15, for 420 bar working pressure.

Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.4315.V112

€99.81 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

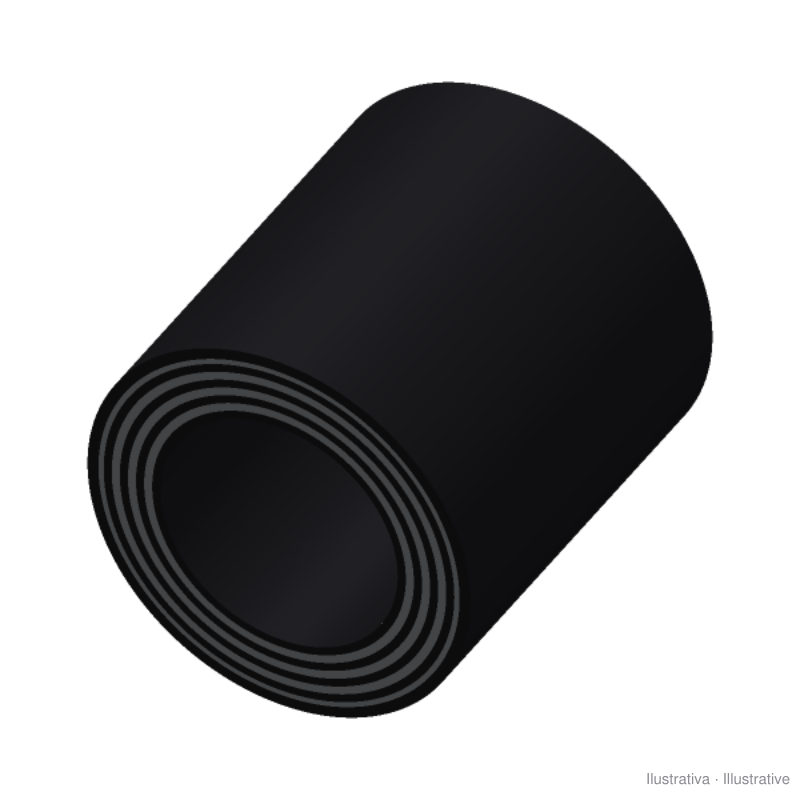

High-pressure hydraulic hose to SAE 100R15, with six layers of steel wire spiral in this size. Synthetic rubber core resistant to hydraulic fluids, and an abrasion- and ozone-resistant cover with MSHA approval.

  • Inside diameter: 38.5 mm (1 1/2", DN 38)
  • Outside diameter: 59.6 mm
  • Working pressure: 420 bar; test: 840 bar; burst: 1680 bar
  • Minimum bend radius: 530 mm
  • Weight: 5.10 kg/m
  • Fluid temperature: from -40 °C to +121 °C

Suitable for mineral and synthetic hydraulic oils (HL, HLP, HLPD, HLVP), emulsions and water-glycol; not suitable for phosphate ester fluids (HFD). Fit it with interlock fittings made for R15.

Source: VOSS Hydraulic and washing unit hoses technical catalogue, 7001218000, 2017; VOSS Fluid Larga Hydraulic steel tube fittings and hose couplings technical catalogue, Ed. 18 10/16.
