SAE 6000 flange with BSP thread
search
  • SAE 6000 flange with BSP thread
  • SAE 6000 flange with BSP thread

SAE 6000 flange with BSP thread

€36.13
Tax included Delivery in 1 to 5 working days.

(29.37 € No tax)

Straight SAE 6000 psi (code 62) flange, with BSP threaded outlet, for high-pressure connections.

Flange: 1" - 1" BSP
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5246.1

€29.37 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: SAE flanges 3000 and 6000 (code 61 and 62): how to identify and measure them

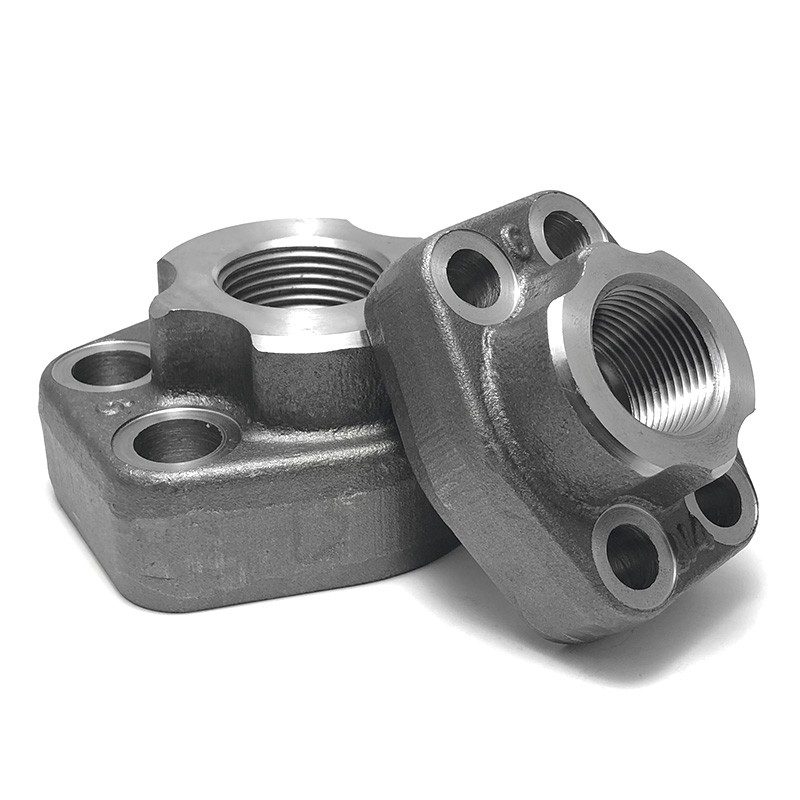

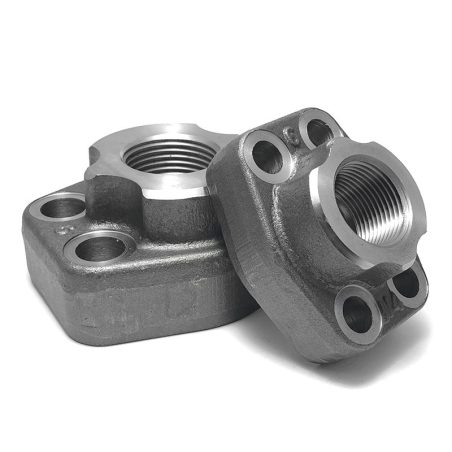

One-piece SAE 6000 psi (code 62) flange with BSP threaded outlet, to connect a pipe or hose fitting to an SAE port on a pump, motor, manifold or valve, with the line coming straight out. It is held by four bolts and seals with an O-ring on the face.

Each option gives first the SAE flange size (the port size) and then the BSP thread of the outlet: 1/2" with 1/2", 3/4" with 1/2", 3/4" with 3/4", 1" with 3/4", 1" with 1", 1.1/4" with 1", 1.1/4" with 1.1/4", 1.1/2" with 1", 1.1/2" with 1.1/2", 2" with 2", 2.1/2" with 2.1/2" and 3" with 3".

Before ordering, check that the port is SAE 6000 (code 62) and not SAE 3000 (code 61): the two series have different bolt patterns. Measure the distance between the holes and the port diameter, and check the O-ring for the SAE size.

1.5246.1

Specific References

ean13
2200001190702

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (13)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
1/2" - 1/2" BSP
1.5246.12
Last units
3/4" - 1/2" BSP
1.5246.3412
Last units
3/4" - 3/4" BSP
1.5246.34
In stock
1" - 3/4" BSP
1.5246.134
Last units
1" - 1" BSP
1.5246.1
In stock
1.1/4" - 1" BSP
1.5246.1141
In stock
1.1/4" - 1.1/4" BSP
1.5246.114
In stock
1.1/2" - 1" BSP
1.5246.112114
In stock
1.1/2" - 1.1/2" BSP
1.5246.112
In stock
2" - 1.1/2" BSP
1.5246.2112
Last units
2" - 2" BSP
1.5246.2
On request
2.1/2" - 2.1/2" BSP
1.5246.212
On request
3" - 3" BSP
1.5246.3
On request
