SV bulkhead union

€4.42
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(3.59 € Excluding VAT. VAT at the legal rate applies.)

VOSS SV bulkhead union to pass a DIN tube through a plate.

DIN SV accessory: 10L
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5910.10L

€3.59 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

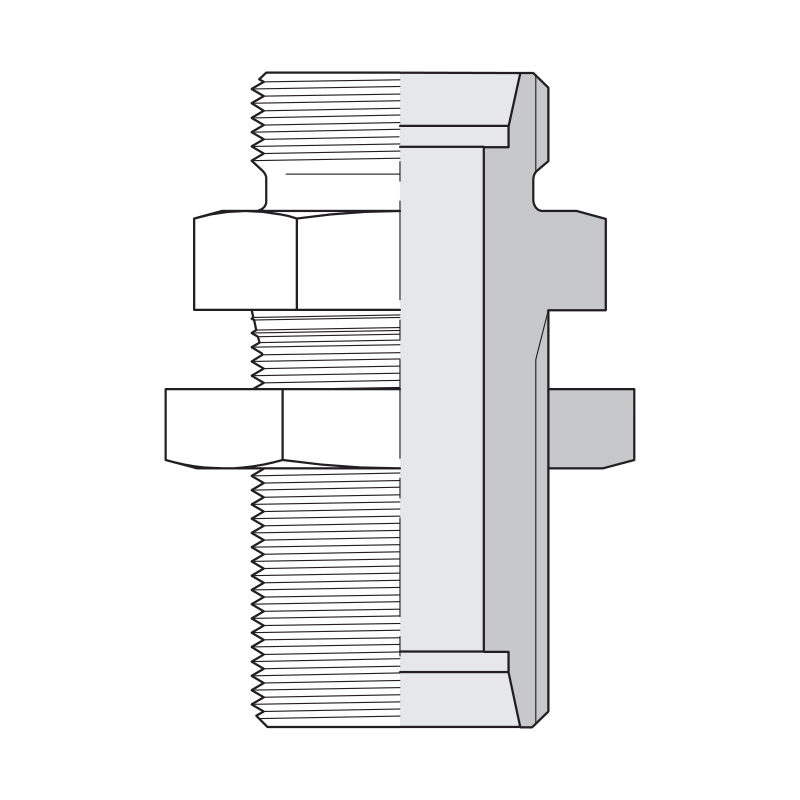

The SV is a straight union with a long threaded body: it passes through the plate, panel or tank wall and is held with a locknut. Both ends connect to DIN 2353 tube (ISO 8434-1, 24° cone) by means of a nut and cutting ring.

  • L series (6 to 42 mm) and S series (6 to 38 mm)
  • Nominal pressure in the VOSS datasheet: L series 500 bar up to 10 mm, 400 bar from 12 to 18 mm and 250 bar from 22 to 42 mm; S series 800 bar up to 10 mm, 630 bar from 12 to 16 mm and 420 bar from 20 to 38 mm

Check the tube diameter, the series and the plate thickness. The locknut is also sold separately. Sold as the body only: the DIN nut and cutting ring are sold separately and are listed in this item's accessories.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.

1.5910.10L

Specific References

Internal barcode
2200001236608
MPN
0137102007

You might also like

Customers who bought this product also bought:

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (28)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
6L
1.5910.6L
In stock
6L B
1.5910.6LSPA
Last units
6S
1.5910.6S
Last units
8L
1.5910.8L
In stock
8L B
1.5910.8LSPA
In stock
8S
1.5910.8S
In stock
10 S
1.5910.10S
Last units
10L
1.5910.10L
In stock
10L B
1.5910.10LSPA
Last units
12L
1.5910.12L
In stock
12L B
1.5910.12LSPA
In stock
12S
1.5910.12S
In stock
15 L
1.5910.15
In stock
15 L B
1.5910.15SPA
In stock
16S
1.5910.16
In stock
16S B
1.5910.16SPA
Last units
18L
1.5910.18
In stock
18L B
1.5910.18SPA
Last units
20S
1.5910.20
In stock
22L
1.5910.22
In stock
25S
1.5910.25
In stock
25S B
1.5910.25SPA
In stock
28L
1.5910.28
On request
30S
1.5910.30
Last units
35L
1.5910.35
Last units
38S
1.5910.38
Last units
42L
1.5910.42
In stock
42L B
1.5910.42SPA
Last units
