BV-10 formed tube connection for S series tube

€16.76
Tax included Delivery in 1 to 5 working days.

(13.63 € No tax)

Part of the VOSS BV-10 formed tube system for the S series, for tube from 16x2 to 38x4 mm.

Tube: 16x2S
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5938.162S

€13.63 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

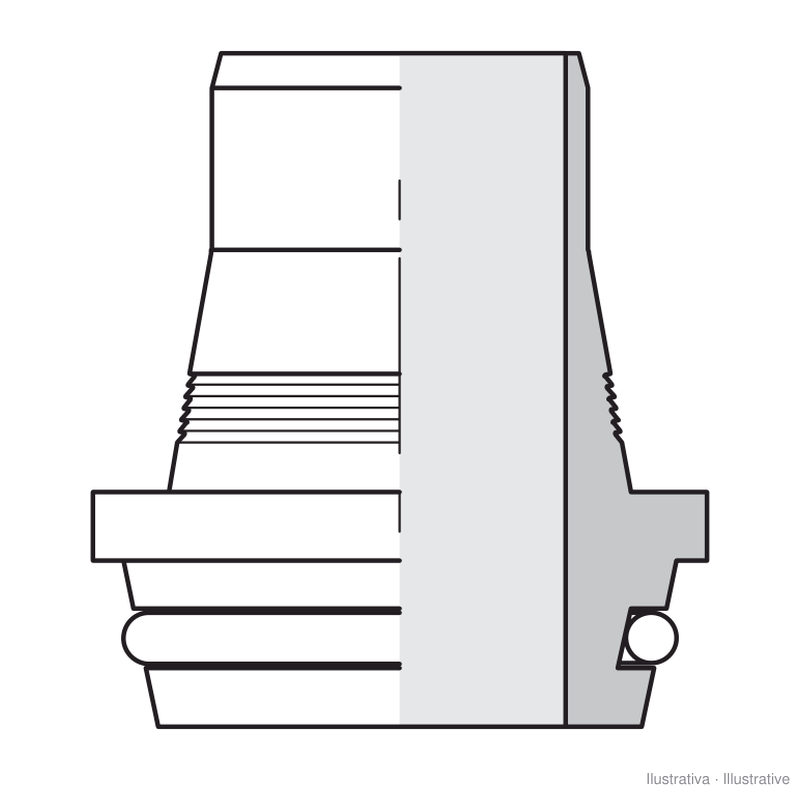

In the VOSS BV-10 system, the tube end is flared with a dedicated tool and seals in the 24° cone of DIN 2353 bodies (ISO 8434-1) through a cone with O-ring, held by a clamping ring and nut, instead of a cutting ring.

  • S series (heavy), given as tube outside diameter x wall: 16x2, 20x2.5, 25x3, 30x3 and 38x4 mm
  • In the VOSS datasheet: NBR O-ring; nominal pressure 630 bar at 16 mm and 420 bar from 20 to 38 mm

The size includes the wall thickness, because the cone has to sit inside the tube. Check the tube outside diameter and wall before ordering.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.

1.5938.162S

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (5)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
16x2S
1.5938.162S
In stock
20x2.5S
1.5938.202.5S
Last units
25x3S
1.5938.253S
Last units
30x3S
1.5938.303S
In stock
38x4S
1.5938.384S
Last units
