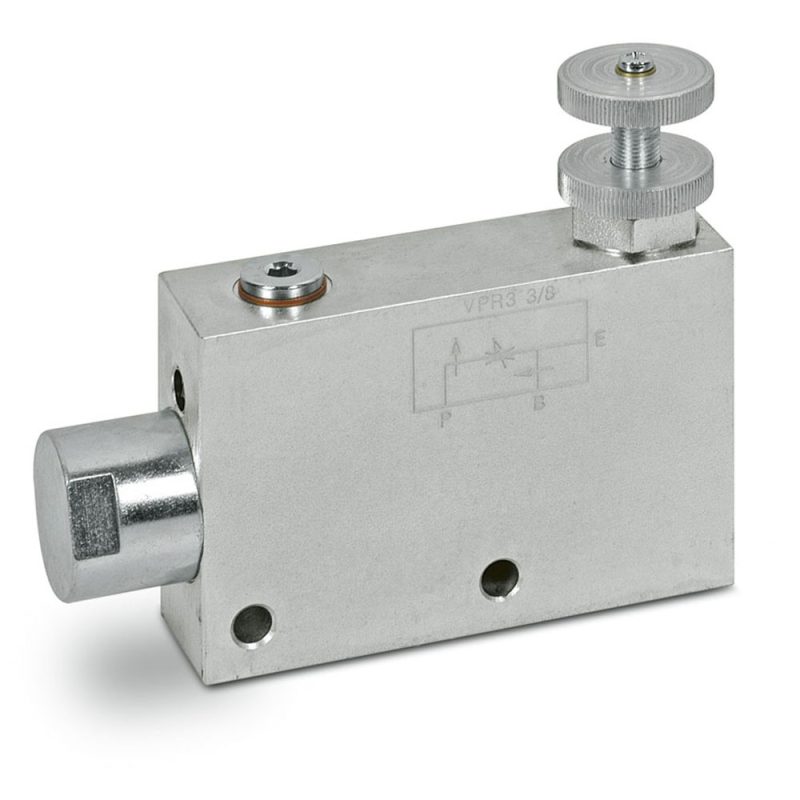

Marchesini VPR3 3-way priority valve
€183.79
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(149.42 € Excluding VAT. VAT at the legal rate applies.)
3-way priority valve: it keeps the controlled flow at P and sends the excess through port B to a second circuit. From 3/8" to 1" BSP, up to 350 bar.
The VPR3 keeps the flow sent to port P constant, whatever the pressure demanded and the inlet flow. Unlike a regulator that dumps to tank, the excess here leaves through port B and can feed a second actuator; port B is not affected by pressure changes, but it is by flow changes.
E connects to the supply, P to the priority actuator and B to tank or to another circuit. It is set with the handwheel, after loosening the locknut.
- 3/8" (V1060): inlet 60 l/min, controlled 50 l/min
- 1/2" (V1070): inlet 80 l/min, controlled 60 l/min
- 3/4" (V1080): inlet 120 l/min, controlled 100 l/min
- 1" (V1090): inlet 200 l/min, controlled 170 l/min
Maximum pressure 350 bar on all sizes.
Source: Oleodinamica Marchesini general catalogue 2018.
1.MA07.V1060
Data sheet
- Port thread
- G 1
G 1/2
G 3/4
G 3/8
Specific References
- Internal barcode
- 2200008699109
- MPN
- V1060
Customers who bought this product also bought:
3 other products in the same category:
Viewed products
Are you an OEM? Reseller? Workshop?
All options for this item (4)
Description
Part number
Availability
Price
3/8" - V1060
1.MA07.V1060
Last units
1/2" - V1070
1.MA07.V1070
Last units
3/4" - V1080
1.MA07.V1080
In stock
1" - V1090
1.MA07.V1090
Last units
