VSTI male BSP plug with ED seal

Name: VSTI male BSP plug with ED seal
Brand: VOSS
Availability: InStock

€9.31

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(7.57 € Excluding VAT. VAT at the legal rate applies.)

VOSS VSTI male BSP plug with elastomer ED seal, from 1/8" to 1.1/2".

DIN VSTI accessory: 1"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5920.1

€7.57 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

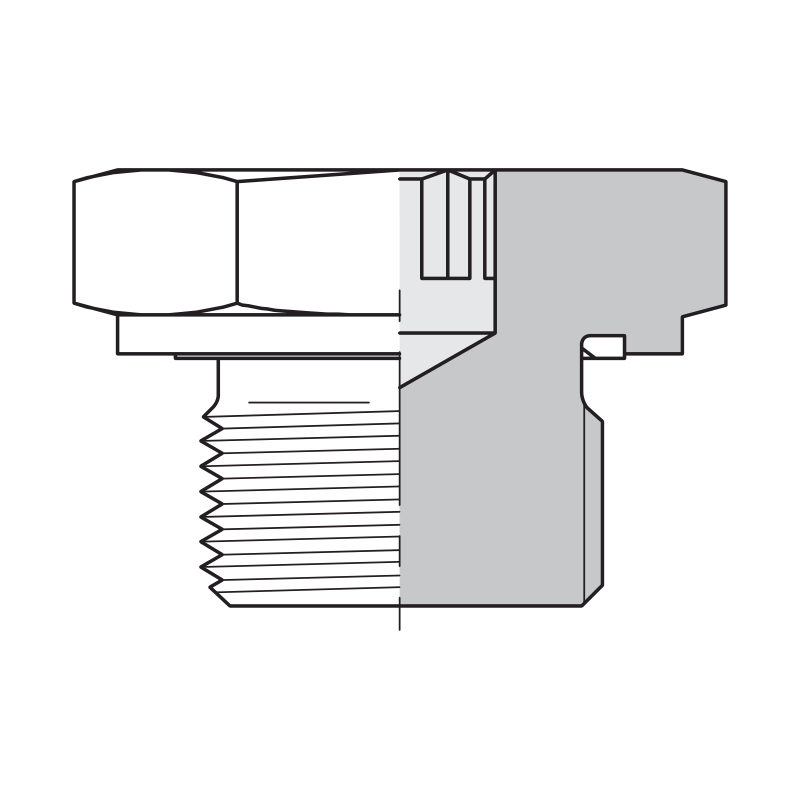

VOSS VSTI male plug with parallel BSP thread and an ED seal (NBR profile ring) next to the face, to close female ports on manifolds, pumps and valves. It seals against the spot face of the port, with no tape or thread sealant.

Thread: parallel BSP (G), ISO 1179-2 form E
Seal: ED profile ring in NBR
Nominal pressure: PN 400 from 1/8" to 1"; for 1.1/4" and 1.1/2" the VOSS datasheet gives PN 315 for the standard version
Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1.1/4" and 1.1/2"

The VOSS datasheet, with tightening torques, is in the attachments. Before ordering, check that the port is parallel, with a flat spot face, and not tapered (BSPT).

Source: VOSS Blanking plugs for ports datasheet.
