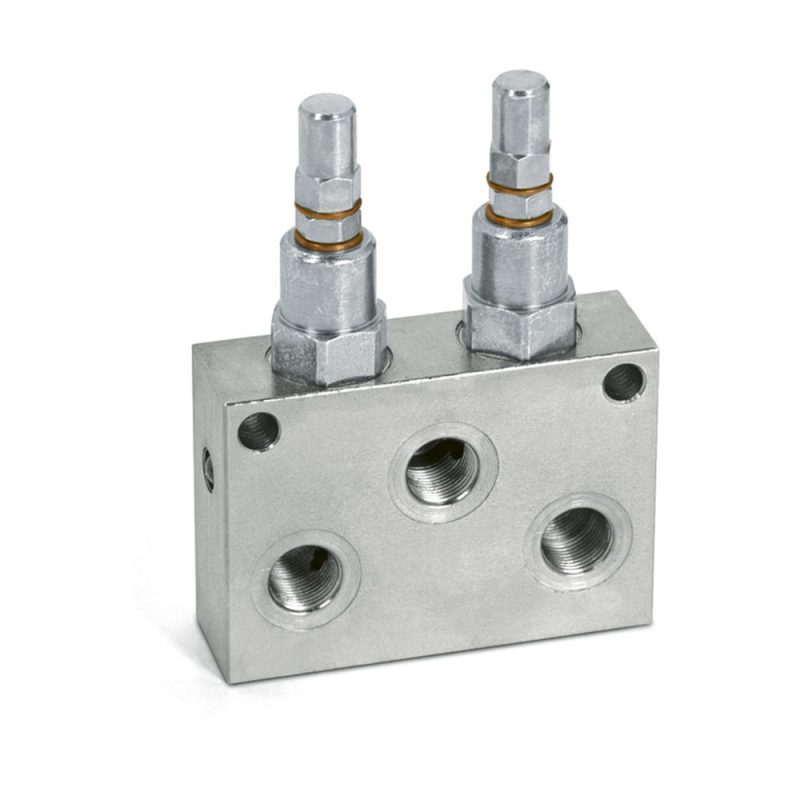

Marchesini VMPD 1/2" double pressure relief valve

Name: Marchesini VMPD 1/2" double pressure relief valve
Brand: Oleodinamica Marchesini
Availability: InStock

€89.89

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(73.08 € Excluding VAT. VAT at the legal rate applies.)

Marchesini VMPD 1/2" double pressure relief valve: two relief valves in one body, for two lines with a single discharge to T.

Relief valves: 1/2" - V0734

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA01.V0734

€73.08 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VMPD combines two direct-acting relief valves in one body, with a single outlet to tank. It limits the pressure of a two-line circuit, each line with its own setting. Ports P and P1 connect to the supply, the other P and P1 ports to the two lines to be protected, and T to the return.

V0734: G 1/2" ports, up to 70 l/min
Springs: no suffix, 10-180 bar (standard); /300, 80-300 bar
Zinc-plated steel body, hardened and ground steel internals, NBR seals

On request there are also 10-50, 20-100 and 50-250 bar springs, handwheel or preparation for sealing.

Source: Oleodinamica Marchesini technical catalogue, section 4 Valvole di massima pressione, 2008.
