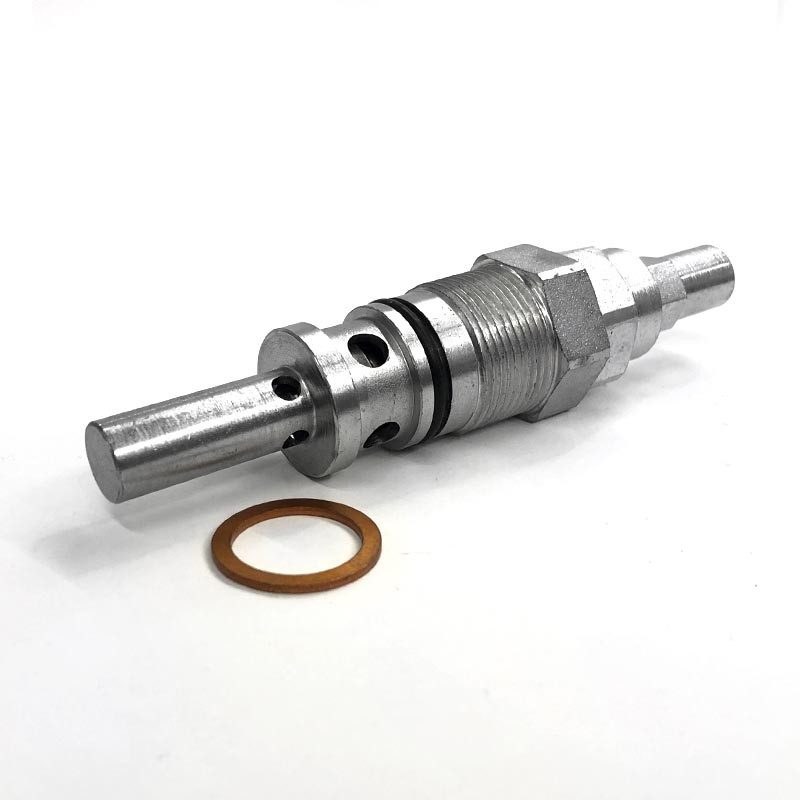

Marchesini VMPC 80 cartridge pressure relief valve

Name: Marchesini VMPC 80 cartridge pressure relief valve
Brand: Oleodinamica Marchesini
Availability: InStock

€32.21

Tax included Delivery in 1 to 5 working days.

(26.19 € No tax)

Marchesini VMPC 80 cartridge pressure relief valve, M26x1.5 thread, up to 80 l/min, with 10-120 or 50-300 bar springs.

Relief valves: VC0800/120

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA01.VC0800/120

€26.19 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The largest of the Marchesini VMPC relief cartridges: direct acting, guided cone poppet, to screw into a manifold cavity with M26x1.5 thread. It opens when the pressure reaches the setting and relieves to T.

VC0800/120: setting from 10 to 120 bar
VC0800/300: setting from 50 to 300 bar
/V: with handwheel for manual adjustment
Maximum flow: 80 l/min
Zinc-plated steel body, NBR seals; weight 0.24 kg

For flows up to 20 or 35 l/min there are the VMPC 20 and VMPC 35 models.

Source: Oleodinamica Marchesini general catalogue 2018.
