EMA3 standpipe test point

Name: EMA3 standpipe test point
Brand: Oleotec
Availability: InStock

€10.11

Tax included Delivery in 1 to 5 working days.

(8.22 € No tax)

Standpipe test point for L and S series DIN fittings, 6 to 12 mm.

Test point accessory: 10L/S

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5931.3T10

€8.22 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

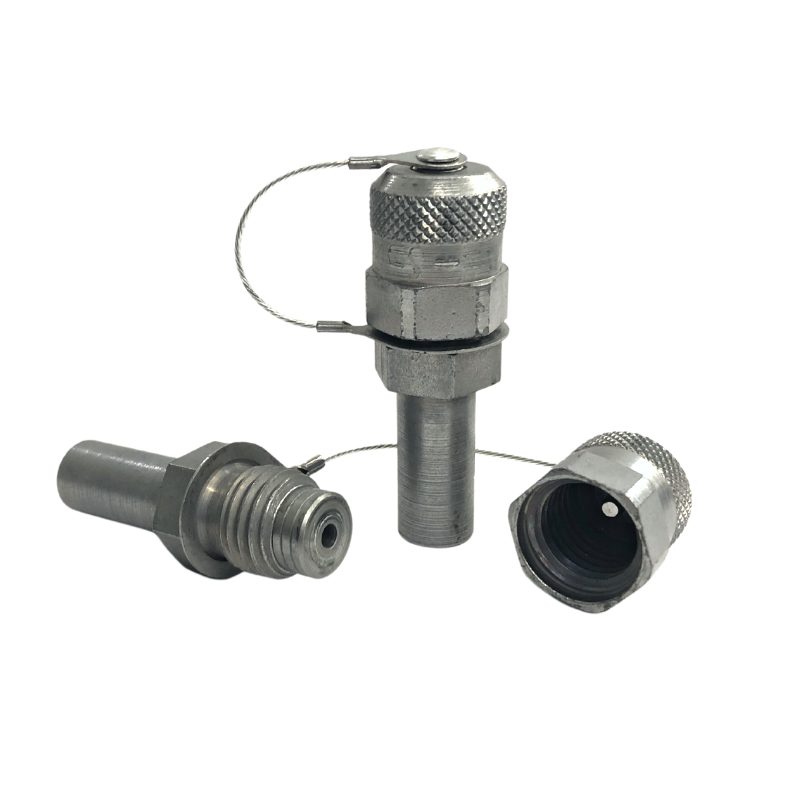

Oleotec test point with a standpipe end: it goes into a 24° DIN fitting in place of the tube and is tightened with that fitting's nut and ring. At the other end it has the EMA3 test connection (M16x2), where a test hose or pressure gauge connects to check pressure, bleed air or take an oil sample.

Available for 6, 8, 10 and 12 mm tube; each size covers both L and S series. Steel body and cap with zinc-nickel finish, to ISO 8434-1. The maximum pressure depends on the series and the size: see the attached catalogue.

Before ordering, check the outside diameter of the tube the fitting takes.

Source: Oleotec MCS technical catalogue, revision 02/20.
