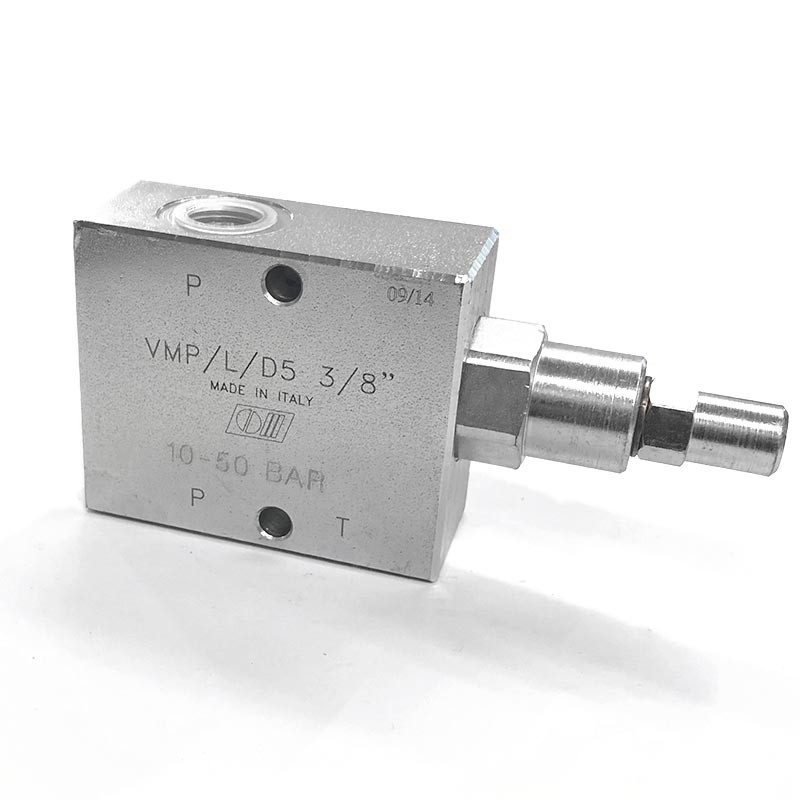

Marchesini VMP L D5 in-line pressure relief valve

* Price on request *
Price including VAT at the legal rate

Marchesini VMP L D5 in-line pressure relief valve, with through P ports, 3/8", 1/2" and 3/4", up to 350 bar.

Relief valves: 3/8" - V0691/000/180
Quantity
Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA01.V0691000180

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Direct-acting relief valve with a block body, two through P ports to fit into the pressure line and one T port for the return. When the pressure reaches the setting, it opens and relieves to T. Port P is reversible.

  • V0691: G 3/8", up to 45 l/min
  • V0692: G 1/2", up to 70 l/min
  • V0693: G 3/4", up to 90 l/min
  • Maximum pressure: 350 bar
  • Zinc-plated steel body, NBR seals

The last number of the code is the spring: /50 for 10-50 bar, /180 for 10-180 bar (standard) and /300 for 80-300 bar. Springs for 20-100 and 50-250 bar are also available on request.

Source: Oleodinamica Marchesini general catalogue 2018.

1.MA01.V0691000180

Data sheet

Port thread
G 1/2
G 3/4
G 3/8

Specific References

Internal barcode
2200111607756
