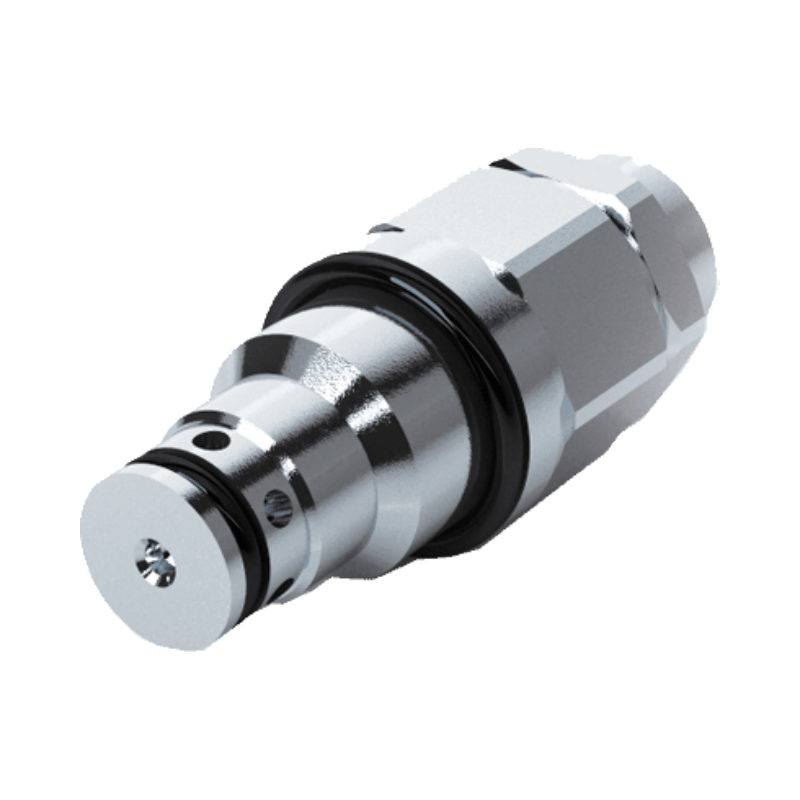

Marchesini VMPC 20 cartridge pressure relief valve

Name: Marchesini VMPC 20 cartridge pressure relief valve
Brand: Oleodinamica Marchesini
Availability: InStock

* Price on request *

Price including VAT at the legal rate

Marchesini VMPC 20 cartridge pressure relief valve, 3/4-16 UNF thread, up to 20 l/min and 350 bar.

Relief valves: VC0200/350

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA01.VC0200/350

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Direct-acting relief cartridge with guided cone poppet, to screw into a manifold cavity with 3/4-16 UNF thread. It opens when the pressure reaches the setting and relieves to T. Maximum flow is 20 l/min.

VC0200/180: setting from 10 to 180 bar
VC0200/350: setting from 180 to 350 bar
/V: with handwheel for manual adjustment
Zinc-plated steel body, NBR seals; weight 0.11 kg

If you are machining the manifold, use the cavity dimensions on the Marchesini datasheet (Ø 20.6, Ø 12.7 H8 and 3/4-16 UNF-2B thread).

Source: Oleodinamica Marchesini general catalogue 2018.
