NEM 2-way normally closed compensator and logic element (cartridge)
search
  • NEM 2-way normally closed compensator and logic element (cartridge)
  • NEM 2-way normally closed compensator and logic element (cartridge)
  • NEM 2-way normally closed compensator and logic element (cartridge)

NEM 2-way normally closed compensator and logic element (cartridge)

€83.15
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(67.6 € Excluding VAT. VAT at the legal rate applies.)

NEM 2-way normally closed pressure compensators and logic elements, in SAE 10, 12 and 16 cartridges, from 70 to 200 l/min and 350 bar.

Valve: 2-way normally closed pressure type, 70 l/min 2.5 bar CAV 10-3S [0203002100]
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.1339.0203002100

€67.60 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

NEM 2-way normally closed cartridges that open by pressure difference. They are used as pressure compensators, to keep a constant pressure drop across a control valve, or as logic elements, to switch large flows with a small pilot. All work up to 350 bar, with NBR and PTFE seals.

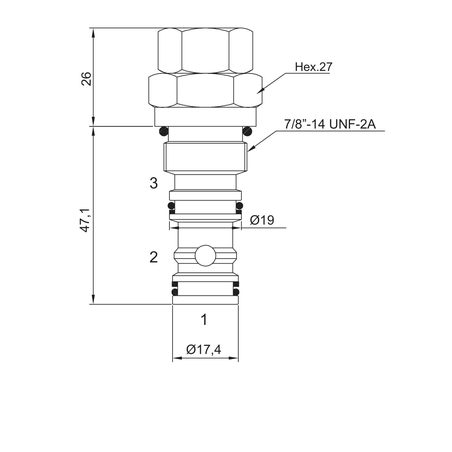

  • 0203 (SAE 10, cavity 10-3S, 7/8"-14 UNF): compensator up to 70 l/min, springs of 2.5, 7.5 or 11 bar
  • 0204 (SAE 12, cavity 12-3S): compensator up to 150 l/min, 5 bar spring
  • 0205.1 (SAE 16, cavity 16-3S, 1-5/16"-12 UN): logic element up to 200 l/min, springs of 2.8 or 4.8 bar
  • 0253002100: cavity 16-3S and 2.8 bar spring, as listed

The spring pressure is the cracking pressure. Check the cavity and the spring before ordering.

Source: NEM General catalogue Vol. 1, Cartridge Valves technical catalogue, version DT001GB001 IR2, 10.2018.

1.1339.0203002100

Data sheet

Cavity
CAV 10-3S
CAV 12-3S
CAV 16-3S

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (7)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
2-way normally closed, 150 l/min 5 bar CAV 12-3S [0204002400]
1.1339.0204002400
In stock
2-way normally closed, 200 l/min 2.8 bar CAV 16-3S [0205102100]
1.1339.0205102100
In stock
2-way normally closed logic element 200 l/min 4.8 bar CAV 16-3S [0205102400]
1.1339.0205102400
In stock
2-way normally closed poppet, 2.8 bar CAV 16-3S [0253002100]
1.1339.0253002100
Last units
2-way normally closed pressure type, 70 l/min 2.5 bar CAV 10-3S [0203002100]
1.1339.0203002100
Last units
2-way normally closed pressure type, 70 l/min 7.5 bar CAV 10-3S [0203002200]
1.1339.0203002200
In stock
2-way normally closed pressure type, 70 l/min 11 bar CAV 10-3S [0203002300]
1.1339.0203002300
In stock
