Argo-Hytos SL2H-BP3/H2I12 normally closed logic element (cartridge)

€78.20
Tax included Delivery in 1 to 5 working days.

(63.57 € No tax)

Argo-Hytos SL2H-BP3/H2I12 spool-type logic valve, normally closed, in 7/8"-14 UNF cartridge (C-10-3S), up to 80 l/min and 350 bar.

Logic element: Normally closed 80 l/min 350 bar CAV10-3S (spring 3 bar): SL2H-BP3/H2I12-030-C-B
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.47002278

€63.57 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The SL2H-BP3/H2I12 is a normally closed, spool-type logic valve in a cartridge. It works as a 3-way pressure compensator, for example to keep a constant pressure drop across a proportional directional valve and so a flow independent of the load, or as the main stage of a pilot operated relief or sequence valve.

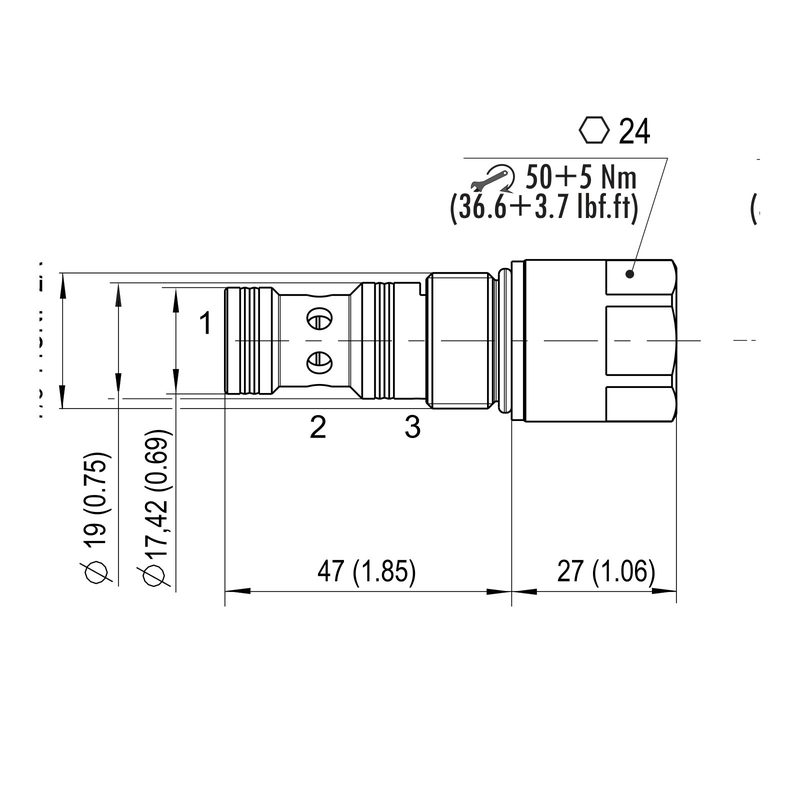

  • 7/8"-14 UNF cartridge, cavity BP3 (C-10-3S)
  • Maximum flow: 80 l/min; maximum pressure: 350 bar
  • C versions, fixed spring: 3, 6 or 10 bar (030, 060, 100)
  • S version, adjustable with a 5 mm Allen key: 1.4 to 14 bar (140)
  • NBR seals; zinc-nickel coated

Check the spring pressure or the adjustment range you need.

Source: Argo-Hytos SL2H-BP3/H2I12 datasheet, HA 5043, 03/2023.

AH.47002278

Data sheet

Cavity
CAV 10-3S
CAV 12-3S

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (8)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
Normally closed 80 l/min 350 bar CAV10-3S (3 bar): SL2H-BP3/H2I12-030-C-B
AH.SL2H-BP3H2I12030C
On request
Normally closed 80 l/min 350 bar CAV10-3S (6 bar): SL2H-BP3/H2I12-060-C-B
AH.SL2H-BP3H2I12060C
On request
Normally closed 80 l/min 350 bar CAV10-3S (10 bar): SL2H-BP3/H2I12-100-C-B
AH.SL2H-BP3H2I12100C
On request
Normally closed 80 l/min 350 bar CAV10-3S (spring 3 bar): SL2H-BP3/H2I12-030-C-B
AH.47002278
In stock
Normally closed 80 l/min 350 bar CAV10-3S (spring 6 bar) SL2H-BP3/H2I12-060-C-B
AH.45651300
In stock
Normally closed 80 l/min 350 bar CAV10-3S (spring 10 bar): SL2H-BP3/H2I12-100-C-B
AH.44520300
In stock
Normally closed 80 l/min 350 bar CAV10-3S (adj. 1.4 to 14 bar): SL2H-BP3/H2I12-140-S-B
AH.45304400
In stock
Normally closed 80 l/min 350 bar CAV10-3S (adj. 1.4 to 14 bar): SL2H-BP3/H2I12-140-S-B (SL2H-BP3H2I12140S)
AH.SL2H-BP3H2I12140S
On request
