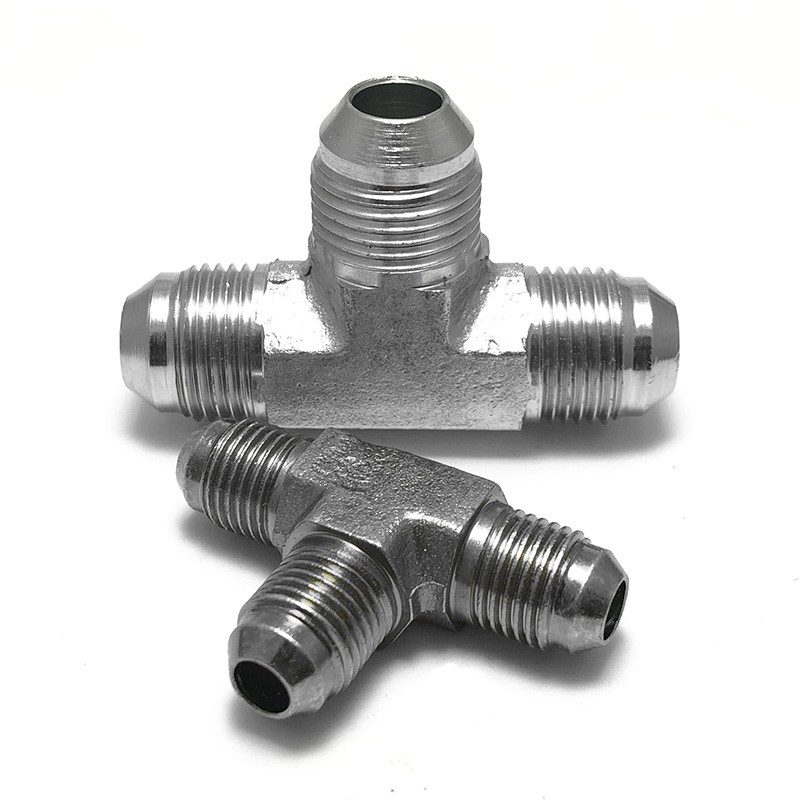

Male-male-male JIC tee (S505)

Name: Male-male-male JIC tee (S505)
Availability: InStock

€12.76

Tax included Delivery in 1 to 5 working days.

(10.37 € No tax)

Tee with three male JIC 37° ends of the same size, to split a JIC line into two or join two into one. S505 series, from 7/16" to 1.5/8".

JIC accessory: 1.1/16"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0603.1116

€10.37 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

Tee, S505 series, with a male JIC end on all three outlets, all the same size. The female JIC fitting of a hose tightens onto each outlet: it splits one line into two, or joins two into one, without needing a manifold block.

The JIC connection seals metal to metal on the 37° cone, with no O-ring or washer; the cones must be clean and free of scratches.

Sizes available: 7/16", 1/2", 9/16", 3/4", 7/8", 1.1/16", 1.3/16", 1.5/16" and 1.5/8".

To identify the JIC size, measure the outside diameter of the male thread: about 11.1 mm for 7/16", 14.3 mm for 9/16", 19 mm for 3/4" and 22.2 mm for 7/8".

Reference 1.0603.1116
