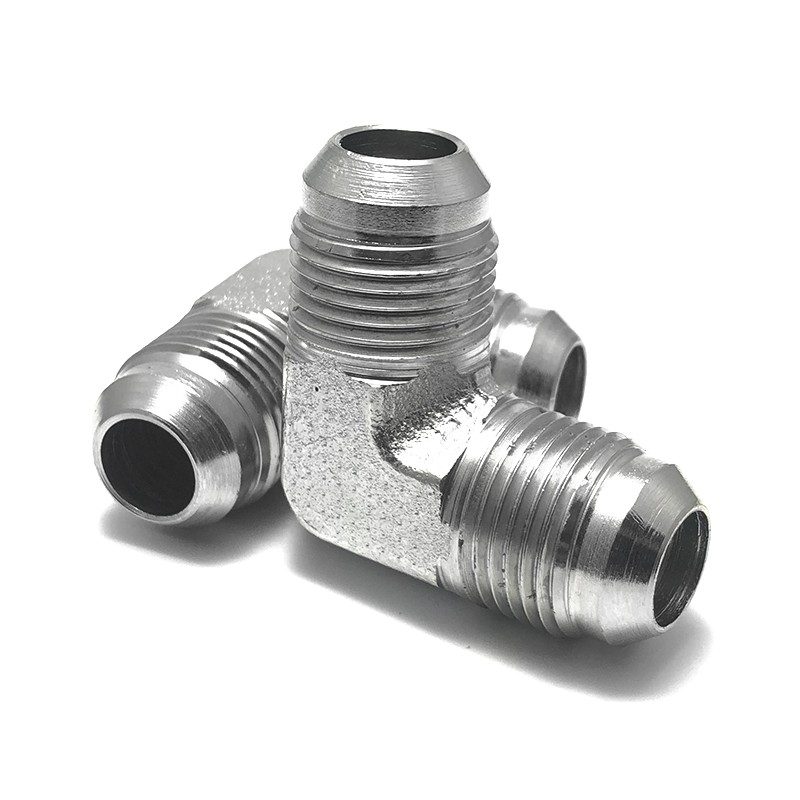

90° male-male JIC elbow (S500)

Name: 90° male-male JIC elbow (S500)
Availability: InStock

€8.93

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(7.26 € Excluding VAT. VAT at the legal rate applies.)

90° male-male JIC elbow, S500 series.

JIC accessory: 1.1/16"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0602.1116

€7.26 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

90° elbow, S500 series, with a male JIC end on both sides. It joins two female JIC hose fittings at a right angle, for example to connect two hoses in a tight space without bending them below their minimum radius.

The JIC connection seals metal to metal on the 37° cone, with no O-ring or washer: the cone surfaces must be clean and free of scratches.

Sizes available: 7/16", 1/2", 9/16", 3/4", 7/8", 1.1/16", 1.5/16" and 1.5/8".

To identify the JIC size, measure the outside diameter of the male thread: about 11.1 mm for 7/16", 14.3 mm for 9/16", 19 mm for 3/4" and 22.2 mm for 7/8".

Reference 1.0602.1116
