KTR PL 550/8/17 bellhousing for 550 mm motor flange and SAE D 2-bolt pump (Linde HPR 135-02)
search
  • KTR PL 550/8/17 bellhousing for 550 mm motor flange and SAE D 2-bolt pump (Linde HPR 135-02)

KTR PL 550/8/17 bellhousing for 550 mm motor flange and SAE D 2-bolt pump (Linde HPR 135-02)

€922.39
Tax included

(749.91 € No tax)

KTR PL 550 aluminium bellhousing, for connecting an IEC electric motor with 550 mm flange to a Linde HPR 135-02 pump with SAE D 2-bolt flange.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. KTR.PL550/8/17

€749.91 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

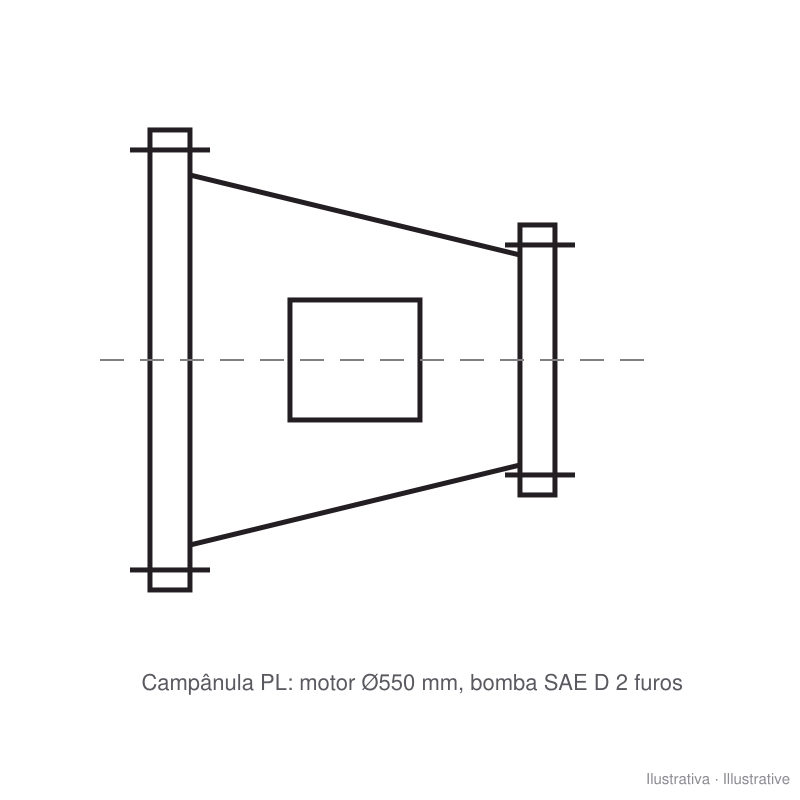

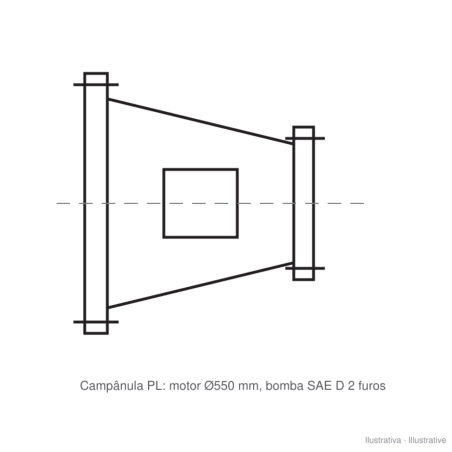

KTR type PL bellhousing (pump mounting bracket) in aluminium, to VDMA 24561 type A. It joins the electric motor to the pump and keeps both shafts aligned, with the coupling fitted inside.

  • Motor side: 550 mm flange, listed in the KTR catalogue for IEC frame 250M motors
  • Pump side: SAE D 2-bolt flange, for the Linde HPR 135-02 piston pump
  • Length (L1) of the PL 550/8: 248 mm, according to the catalogue

The flexible coupling is bought separately and chosen to suit the motor and pump shafts. Before ordering, check the motor flange, the exact pump model and the shaft lengths so that the coupling fits.

Source: KTR Hydraulic Components technical catalogue, 04/18.

KTR.PL550/8/17
