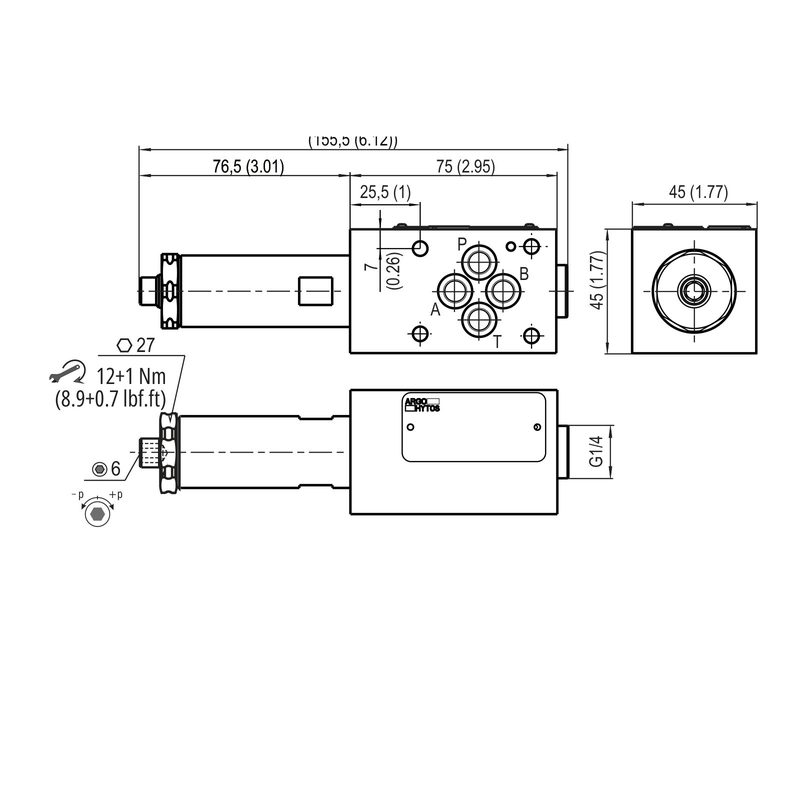

Argo-Hytos VRN2-06/MA-21TV modular pressure reducing valve, NG6 (CETOP 3)

* Price on request *

Price including VAT at the legal rate

Pilot-operated modular pressure reducing valve, NG6 (CETOP 3), reducing the pressure at port A. Setting from 10 to 210 bar, up to 40 l/min.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.22992000

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Pilot-operated, spool-type pressure reducing and relieving valve in ISO 4401-03 (CETOP 3) modular form. It fits in the stack, under the NG6 solenoid valve, and lowers the pressure reaching the actuator through port A. Being 3-way, if the pressure on the reduced side rises above the setting, the excess is relieved to tank.

Model MA: reduction at port A, with a by-pass check valve for free return flow
Setting range (21): 10 to 210 bar
Maximum flow: 40 l/min
Maximum pressure at ports P, A and B: 320 bar
Gauge port M, G1/4

Before ordering, check the full code on the nameplate of the fitted valve, especially the final letters, which give the adjustment type and the seals.

Source: Argo-Hytos VRN2-06/M(R) technical data sheet, HA 5155, 01/2025.
