Duplomatic MZE / PZME3 modular proportional reducing valve NG6 (CETOP 3)

Name: Duplomatic MZE / PZME3 modular proportional reducing valve NG6 (CETOP 3)
Brand: Duplomatic
Availability: InStock

€1,208.54

Tax included Delivery in 1 to 5 working days.

(982.55 € No tax)

Duplomatic modular proportional pressure reducing valve, NG6 (CETOP 3), with ranges of 7 to 70, 7.5 to 150 and 8 to 230 bar, 24 V DC.

MZE: 7-70 BAR 24V PZME3-070/10N-D24K1

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.PZME370

€982.55 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

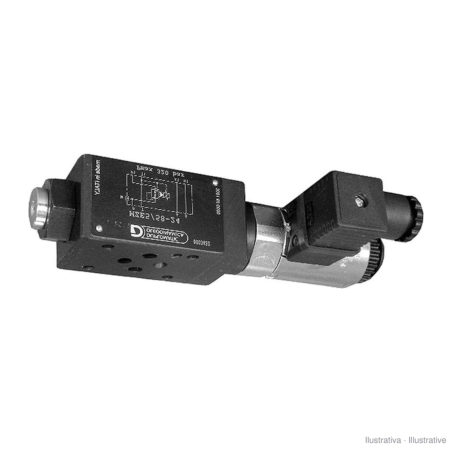

Three-way pilot-operated pressure reducing valve with proportional control, in modular (sandwich) version with ISO 4401-03 interface, NG6 (CETOP 3). It is stacked under the solenoid valve and reduces the pressure in one branch of the circuit, keeping it steady even when the flow changes. The reduced pressure follows the solenoid current.

MZE3/58-24: 7 to 70 bar
MZE4/58-24: 7.5 to 150 bar
MZE5/58-24: 8 to 230 bar
PZME3-070/10N-D24K1: 7 to 70 bar, from the current Duplomatic range

Maximum inlet pressure 320 bar. All options are 24 V DC. The MZE drains internally to the T line of the valve itself. Check the pressure range and voltage before ordering.

Source: Duplomatic MZE technical catalogue, version 81 500/115 ED; Duplomatic Product Overview Industrial Hydraulics product guide.
