Aircomp manual 3-way shut-off and exhaust valve V3 G1/4 Line 042
search
  • Aircomp manual 3-way shut-off and exhaust valve V3 G1/4 Line 042

Aircomp manual 3-way shut-off and exhaust valve V3 G1/4 Line 042

€23.12
Tax included Delivery in 1 to 5 working days.

(18.8 € No tax)

Aircomp V3 manual 3-way valve, G1/4 thread, Line 042: shuts off the air and exhausts the downstream line, with padlock. End-of-stock item.

Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 422500001.2715

€18.80 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

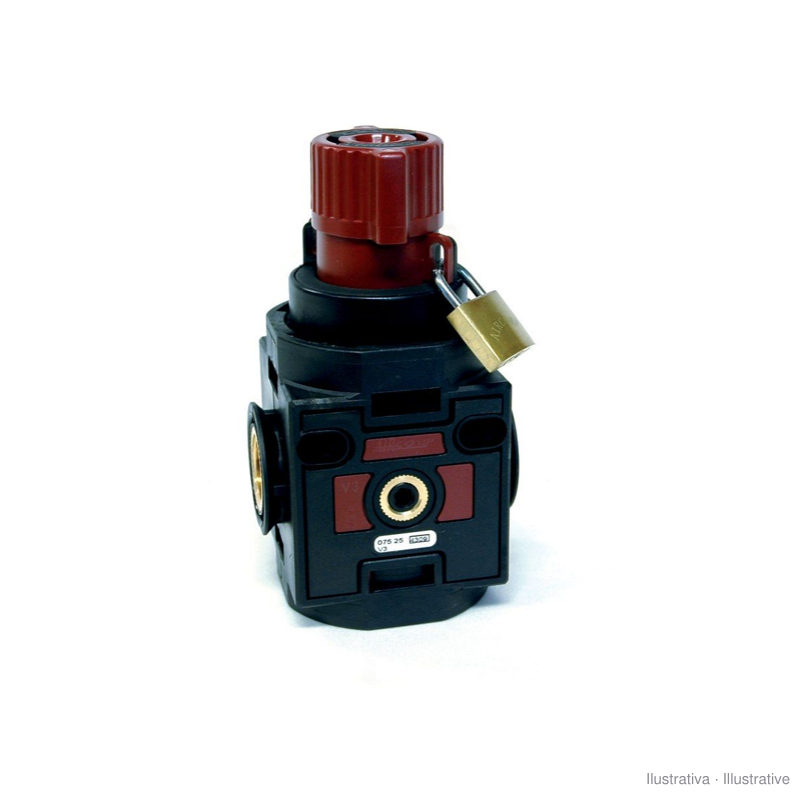

Aircomp lockable 3-way valve V 1/4" 042 V3 (code 042.25.00001), from the 042 modular line. In the closed position it shuts off the air inlet and empties the downstream circuit, so that work can be done on the machine without pressure. It comes with a padlock, which prevents accidental or unauthorised opening during maintenance.

  • Inlet and outlet thread: G1/4; exhaust: G1/8
  • Maximum inlet pressure: 16 bar
  • Reference flow: 1570 Nl/min (at 10 bar, Δp 1 bar)
  • Maximum ambient temperature: 50 °C (at 10 bar)

It can be used on its own, wall-mounted through the holes in the body, or at the head of a Line 042 V3+FR+L assembly.

Source: Aircomp air preparation units technical catalogue.

422500001.2715
