Micro pressure regulator Line 038 (incomplete code - to be confirmed)
search
  • Micro pressure regulator Line 038 (incomplete code - to be confirmed)

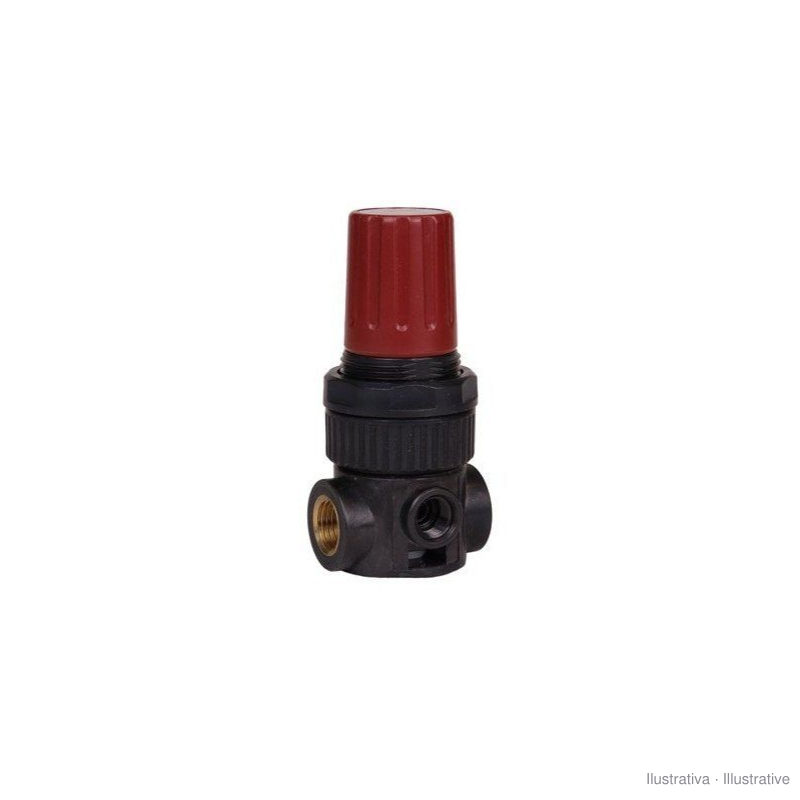

Aircomp pressure micro-regulator Line 038

€16.18
Tax included Delivery in 1 to 5 working days.

(13.16 € No tax)

Aircomp Line 038 diaphragm pressure micro-regulator, for setting the air to a tool, a cylinder or a panel. End-of-stock item.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. MR038 2315

€13.16 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Aircomp Line 038 diaphragm micro-regulator for small flows. It is panel-mounted with a ring nut or wall-mounted with a bracket, and the knob has a lock so the setting does not drift in use.

  • Maximum inlet pressure: 16 bar
  • Reference flow: 360 Nl/min (at 6.3 bar, Δp 1 bar)
  • Maximum ambient temperature: 50 °C (at 10 bar)

In Line 038 the micro-regulator is made with G1/8 or G1/4 thread and 0-2, 0-4, 0-8 or 0-12 bar range, in the version for air (with relieving and red knob) or for water (without relieving and black knob). Our reference does not show which of these it is: check the thread and knob colour of the regulator you are replacing and ask us to confirm.

Source: Aircomp air preparation units technical catalogue.

MR038 2315
