NEM pressure relief valve cartridge (SAE 08, 10, 12 and M16x1.5)

€43.27
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(35.18 € Excluding VAT. VAT at the legal rate applies.)

NEM cartridge pressure relief valves for SAE 08, SAE 10 and SAE 12 cavities and M16x1.5 thread, from 10 to 450 bar and up to 100 l/min.

Valve: 250-450BAR M16X1.5 [00210300E0]
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.1339.00210300E0

€35.18 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

NEM pressure relief cartridges to screw into manifolds. They open when the pressure reaches the setting and relieve to tank. Choose by manifold cavity, flow and pressure range:

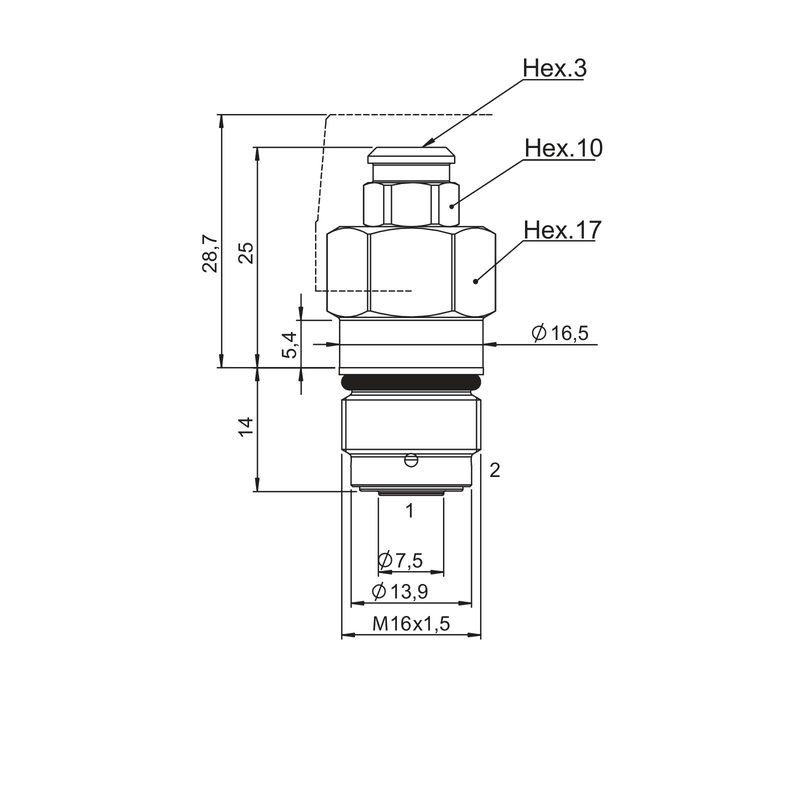

  • M-021 (00210300E0): M16x1.5 thread, 1.5 l/min, 250 to 450 bar, for pilot duty
  • CT-022 and 00223 series (SAE 08 cavity, 3/4-16 UNF): up to 20 l/min, in several ranges between 5 and 350 bar
  • CT-023 (SAE 10 cavity, 7/8-14 UNF): 40 l/min, ranges 40-140, 120-250 and 220-410 bar; 0023520000 has a hardened body, which NEM recommends for heavy duty and lifting equipment
  • CT-024 (SAE 12 cavity, 1-1/16-12 UN): 90 l/min, ranges 60-250 and 200-350 bar
  • CT-033 (0033030000): pilot operated, SAE 10 cavity, 100 l/min, 20 to 350 bar
  • CT-052 (0052000100 to 0052030100): direct-acting proportional, SAE 08, 2 l/min, for pilot duty; CT-9800 coil sold separately

Source: NEM cartridge valves technical catalogue, 09.7.

1.1339.00210300E0

Data sheet

Cavity
CAV 8-2
CAV 10-2
CAV 12-2
M16x1.5

Specific References

MPN
00210300E0

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (18)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
40L/MIN (40 - 140BAR) CAV 10-2 [0023310000]
1.1339.0023310000
In stock
40L/MIN (120 - 250BAR) CAV 10-2 [0023320000]
1.1339.0023320000
In stock
40L/MIN (220 - 410BAR) CAV 10-2 [0023330000]
1.1339.0023330000
In stock
90L/MIN (060 - 250BAR) CAV 12-2 [0024020000]
1.1339.0024020000
Last units
90L/MIN (200 - 350BAR) CAV 12-2 [0024030000]
1.1339.0024030000
In stock
250-450BAR M16X1.5 [00210300E0]
1.1339.00210300E0
Last units
CAV 08-2 (005-160 BAR) [0022011000]
1.1339.0022011000
In stock
CAV 08-2 (10-50 BAR) [0022300000]
1.1339.0022300000
In stock
CAV 08-2 (50-120 BAR) [0022310000]
1.1339.0022310000
In stock
CAV 08-2 (050-350 BAR) [0022031000]
1.1339.0022031000
In stock
CAV 08-2 (120-200 BAR) [0022320000]
1.1339.0022320000
In stock
CAV 08-2 (200-350 BAR) [0022330000]
1.1339.0022330000
In stock
Valve 10-80 bar, direct-acting [0052000100]
1.1339.0052000100
Last units
Valve 30-150 bar, direct-acting [0052010100]
1.1339.0052010100
In stock
Valve 40-250 bar, direct-acting [0052020100]
1.1339.0052020100
In stock
Valve 70-350 bar, direct-acting [0052030100]
1.1339.0052030100
Last units
Valve CAV10-2 (20-350 bar) [0033030000]
1.1339.0033030000
Last units
With hardened sealing body 120-250 bar CAV 10-2 [0023520000]
1.1339.0023520000
In stock
