Hydac WK07L-01-C-V-0 3/2 spool solenoid valve, SAE-07 cartridge

* Price on request *

Price including VAT at the legal rate

Hydac 3/2-way direct-acting spool solenoid valve in SAE-07 cartridge (FC07-3), up to 10 l/min and 350 bar, with FKM seals.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. HYD3037591

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

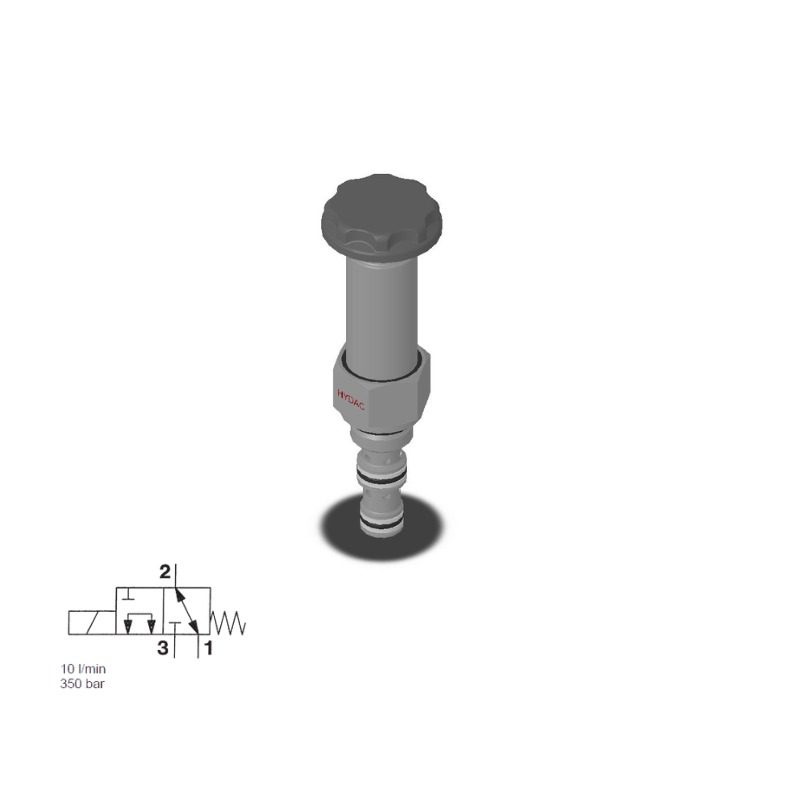

The WK07L-01 is a Hydac cartridge solenoid valve, 3-way 2-position, with a direct-acting spool. With the coil de-energised it connects port 1 to 2 and blocks 3; with the coil energised it connects 3 to 1 and blocks 2.

Nominal flow: up to 10 l/min; operating pressure: up to 350 bar
Cavity: FC07-3
Internal leakage: 150 cm³/min at 210 bar
V: FKM seals, for oil from -20 °C to 120 °C
C: cartridge only, without body
Hydac 40-1836 series coils, 12 or 24 V DC or 115/230 V AC, with several connector types

The 0 at the end of the code is not in the Hydac catalogue: check with us whether the item includes a coil. If you need one, tell us the voltage and connector of the machine's coil.

Source: Hydac WK07L-01 datasheet, E 5.955.3/01.13.
