Argo-Hytos SH1F-A3/L020-A kick-down load shuttle valve, CAV 8-3 cartridge (2 bar)
€63.14
Price including VAT at the legal rate
(51.33 € Excluding VAT. VAT at the legal rate applies.)
Argo-Hytos cartridge valve for single-acting cylinders: with pressure at P it feeds the cylinder, without pressure it connects it to tank. Cavity 8-3, 20 l/min, 250 bar.
The SH1F-A3 is a poppet-type kick-down shuttle valve in a screw-in cartridge, for circuits with a single-acting cylinder. When there is pressure at port 1 (P), the ball check opens and oil flows to port 3 (A), while the poppet closes the connection from A to tank. When the pressure at P goes, the cylinder pressure, pushed by its return spring, shifts the poppet and oil flows back from A to port 2 (T), not back to P.

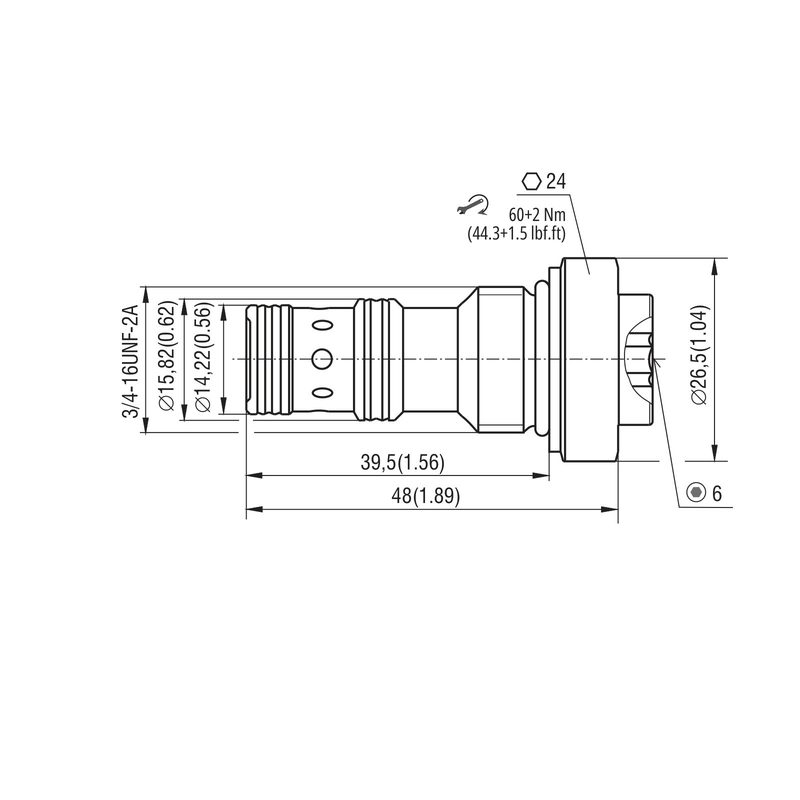

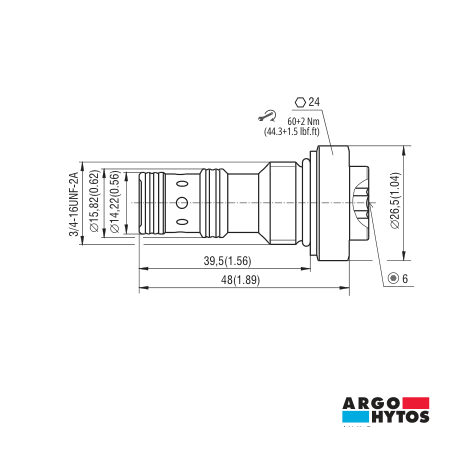

- 3/4"-16 UNF cartridge, cavity A3 (C-8-3)
- Maximum flow: 20 l/min; maximum pressure: 250 bar
- Cracking pressure: 2 ± 0.5 bar (L020 version)
- Leak-free closing, sharp-edged steel seats; NBR seals; zinc-coated
- Cartridge tightening torque: 60 Nm
Source: Argo-Hytos SH1F-A3 datasheet, HA 5029, 06/2024.
AH.22751400
Data sheet
- Cavity
- CAV 8-3
Specific References
- Internal barcode
- 2200111712641
