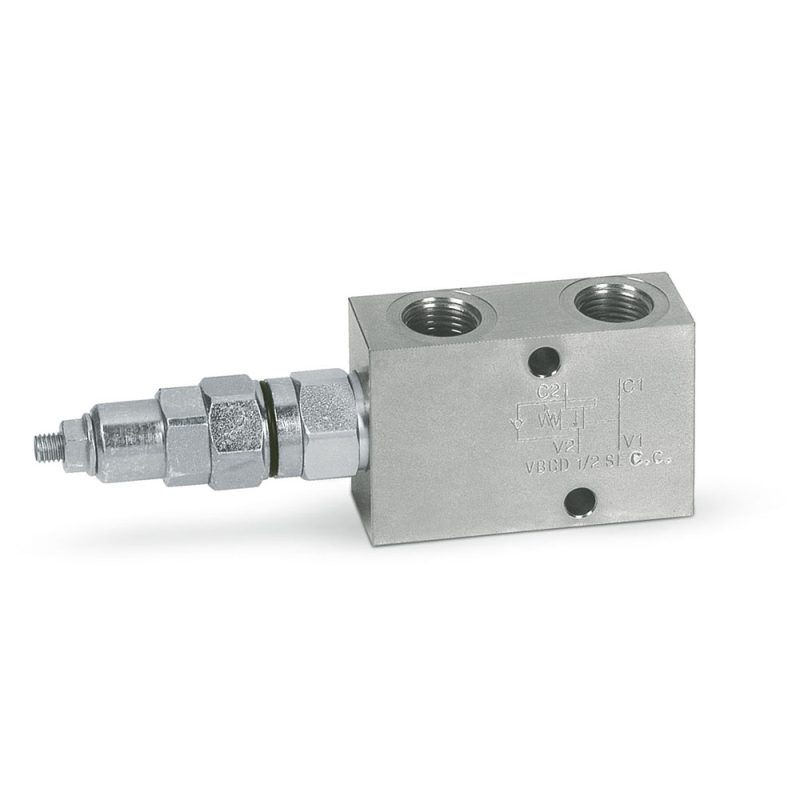

Marchesini VBCD SE CC 3/8" and 1/2" overcentre valve for closed centre

Name: Marchesini VBCD SE CC 3/8" and 1/2" overcentre valve for closed centre
Brand: Oleodinamica Marchesini
Availability: InStock

€126.59

Tax included Delivery in 1 to 5 working days.

(102.92 € No tax)

Marchesini VBCD SE CC single-acting overcentre valve, 3/8" and 1/2", for closed centre.

Overcentre valves: 3/8" - V0407

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0407

€102.92 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Marchesini single overcentre valve for closed-centre directional valves, in 3/8" and 1/2" sizes. It holds the cylinder in one direction, lowers the load in a controlled way and limits the pressure in case of shocks. It is not sensitive to back pressure, so it can be used where a normal overcentre valve does not control the load properly.

3/8" (V0407): up to 35 l/min, pilot ratio 1:3.1
1/2" (V0408): up to 50 l/min, ratio 1:3.1
V0407/RP18 and V0408/RP18: 1:8 pilot ratio, opening with less pilot pressure

Maximum pressure 350 bar; factory set at 320 bar. Connect V1 and V2 to the directional valve, C1 to the free-flow side of the actuator and C2 to the held side. The 3/4" size is the VBCD SE CC V0409 item.

Source: Oleodinamica Marchesini technical catalogue, section Overcentre valves.
