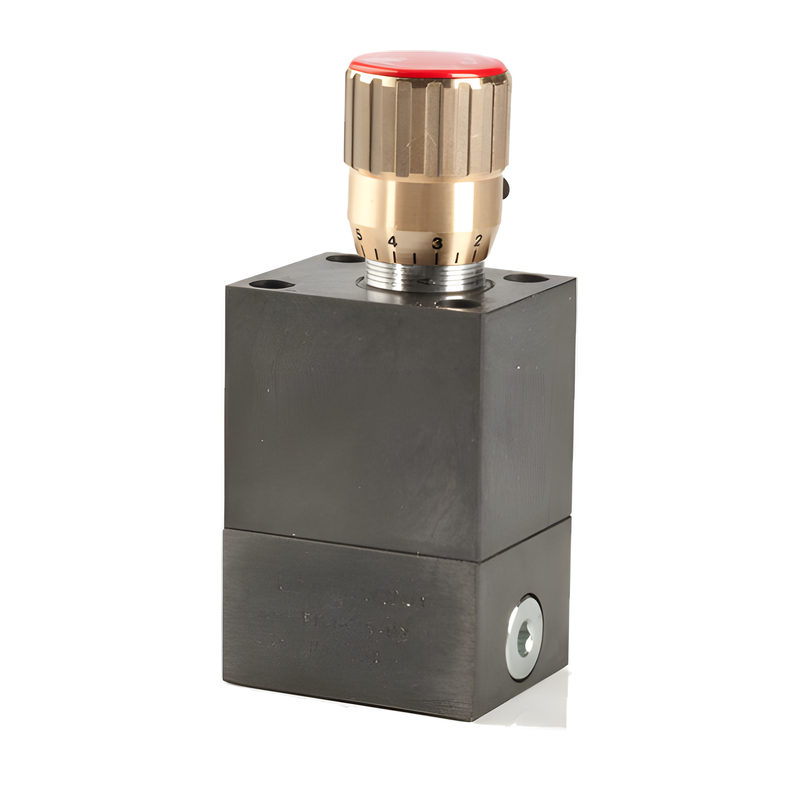

Tognella FT 289/5-03-CH one-way compensated flow control valve 2-22 l/min, NG6 (CETOP 3)

One-way version of the Tognella FT 289 pressure-compensated flow control valve, for NG6 (CETOP 3) plate mounting. It controls the flow in one direction, between 2 and 22 l/min, and in the opposite direction lets the oil through freely.

Being compensated, the set flow holds when the load pressure rises or falls. It is the choice when a cylinder must always advance at the same speed and return quickly, for example on work feeds and machine tool tables.

It fits on a subplate or in the CETOP 3 stack. Before ordering, check which line has to be controlled.
