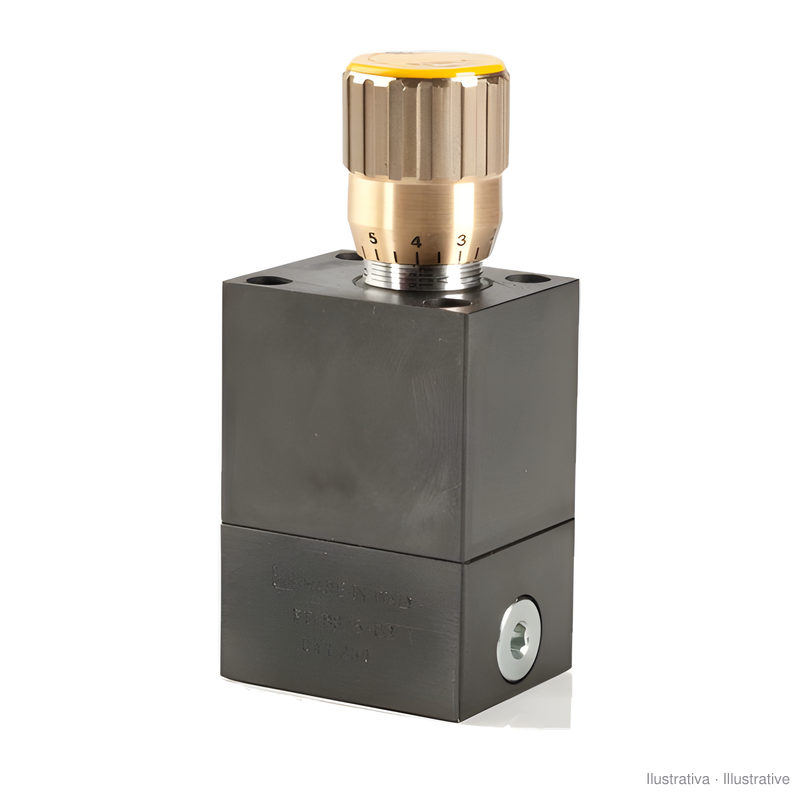

Tognella FT 288/5-03-CH one-way compensated flow control valve 0-2.5 l/min, NG6 (CETOP 3)
search
  • Tognella FT 288/5-03-CH one-way compensated flow control valve 0-2.5 l/min, NG6 (CETOP 3)

Tognella FT 288/5-03-CH one-way compensated flow control valve 0-2.5 l/min, NG6 (CETOP 3)

* Price on request *
Tax included

One-way pressure-compensated flow control valve, 0 to 2.5 l/min, for NG6 (CETOP 3) subplate mounting. Tognella FT 288/5-03-CH.

Quantity
Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2131.288503CH

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Pressure-compensated flow control valve from Tognella, FT 288/5 series, for NG6 (CETOP 3) plate mounting. Compensated means it holds the set flow even when the working pressure changes, so the actuator moves at the same speed with more or less load.

It is one-way: it controls one direction and the return flows freely. The range is 0 to 2.5 l/min, intended for very slow, steady feeds.

It fits on a subplate or in the CETOP 3 stack. Before ordering, check the controlled flow direction and that the flow of the movement fits within this range.

1.2131.288503CH

Data sheet

CETOP interface
NG6 (CETOP 3)

Specific References

ean13
2200111647677
