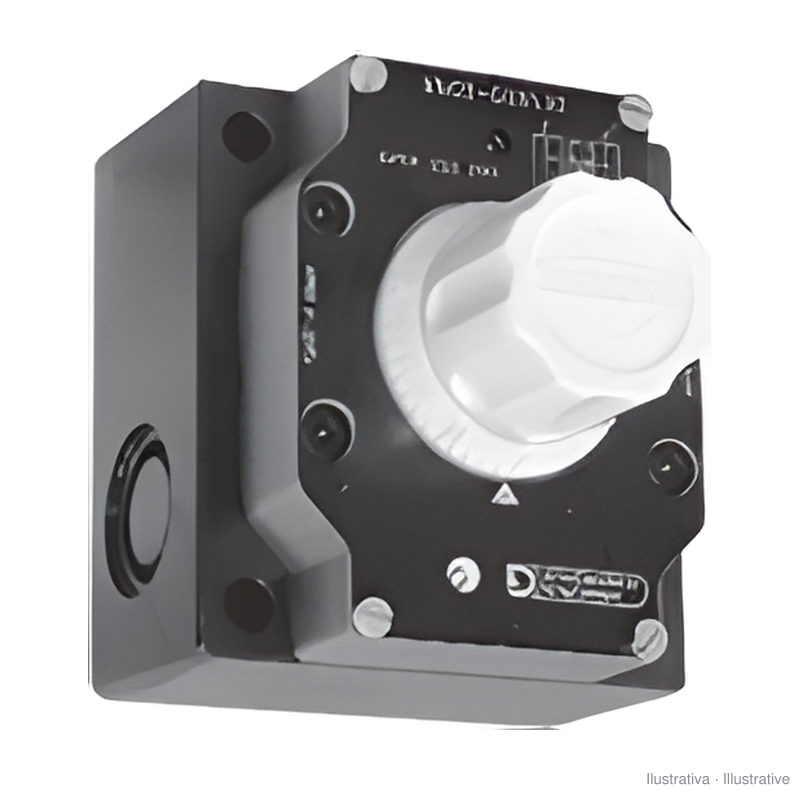

Duplomatic RPC pressure-compensated flow control valve

Name: Duplomatic RPC pressure-compensated flow control valve
Brand: Duplomatic
Availability: InStock

€868.12

Tax included Delivery in 1 to 5 working days.

(705.79 € No tax)

Duplomatic RPC flow control valves, pressure and temperature compensated: RPC1 for subplate or CETOP 3 modular, and RPCQ 3-way for CETOP 6 subplate.

RPC: RPCQ-2T3/31

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.RPCQ2T331

€705.79 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

RPC valves keep the flow to the actuator constant, even with changes in oil pressure and temperature. The set flow stays within ±2% of the valve's maximum.

RPC1-10/CT/M/42: ISO 6263-03 (CETOP 3) subplate mounting, up to 10 l/min, with check valve for free return (C), temperature compensation (T) and single-turn knob (M)
RPC1-1/CT/M/41: same construction, for flows up to 1 l/min
RPC1-10/MA/10: ISO 4401-03 modular version, with control on actuator chamber A, up to 10 l/min
RPCQ-2T3/31: 3-way flow control valve for ISO 6263-06 (CETOP 6) subplate, which sends the surplus flow to tank, with built-in relief valve (Q), 10 to 210 bar

RPC1 valves work up to 250 bar and need at least 10 bar difference between A and B.

Source: Duplomatic RPC1 technical catalogue, version 32 200/110 ED; Duplomatic RPC*-*T3 technical catalogue, version 32 350/112 ED.
