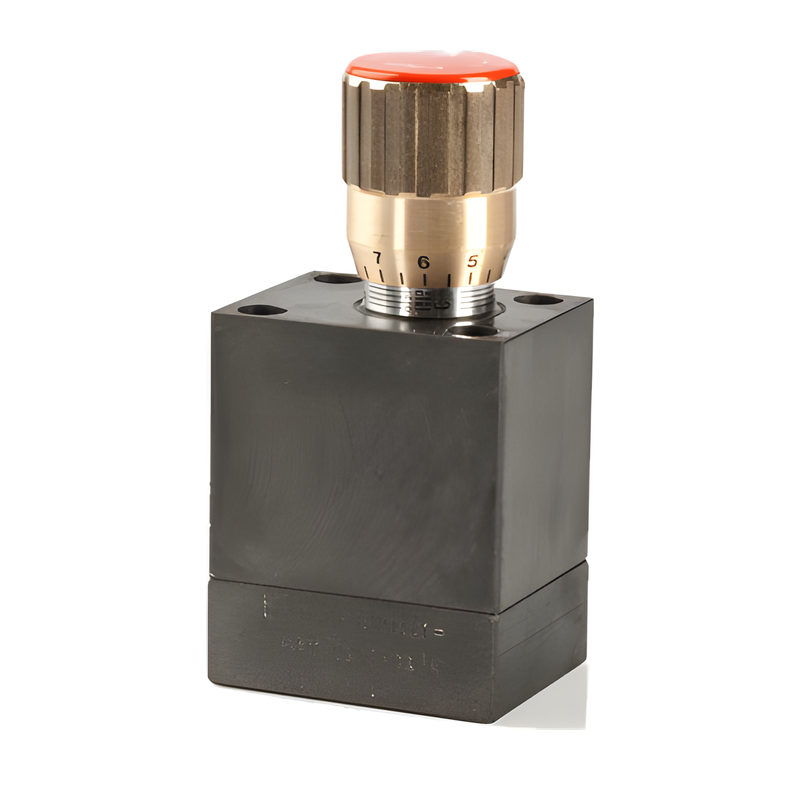

Tognella FT 289/2-03-CH bidirectional compensated flow control valve 2-22 l/min, NG6 (CETOP 3)
search
  • Tognella FT 289/2-03-CH bidirectional compensated flow control valve 2-22 l/min, NG6 (CETOP 3)

Tognella FT 289/2-03-CH bidirectional compensated flow control valve 2-22 l/min, NG6 (CETOP 3)

€467.70
Tax included

(380.24 € No tax)

Pressure-compensated flow control valve, 2 to 22 l/min, controlling both directions, for NG6 (CETOP 3) subplate mounting. Tognella FT 289/2-03-CH.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2131.289203CH

€380.24 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Pressure-compensated flow control valve from Tognella, FT 289/2 series, for plate mounting on the NG6 (CETOP 3) pattern. Pressure compensation holds the set flow even when the load on the actuator changes, giving steady speeds on presses, work tables and machine feeds.

This is the bidirectional version: the flow is controlled in both directions. The setting range is 2 to 22 l/min.

To control one direction only, with free return, the version is the FT 289/5. Check the subplate pattern and the maximum flow of the circuit.

1.2131.289203CH

Data sheet

CETOP interface
NG6 (CETOP 3)

Specific References

ean13
2200111647684
